Connection Latency information

Data Structures
struct	lws_conmon
union	lws_conmon.protocol_specific
struct	lws_conmon.protocol_specific.http

Typedefs
typedef uint32_t	lws_conmon_interval_us_t
typedef enum lws_conmon_pcol	lws_conmon_pcol_t
typedef enum lws_conmon_dns_disposition	lws_conmon_dns_disposition_t

Enumerations
enum	lws_conmon_pcol { LWSCONMON_PCOL_NONE , LWSCONMON_PCOL_HTTP }
enum	lws_conmon_dns_disposition { LWSCONMON_DNS_NONE , LWSCONMON_DNS_OK = 1 , LWSCONMON_DNS_SERVER_UNREACHABLE = 2 , LWSCONMON_DNS_NO_RESULT = 3 }

Functions
LWS_VISIBLE LWS_EXTERN void	lws_conmon_wsi_take (struct lws *wsi, struct lws_conmon *dest)
LWS_VISIBLE LWS_EXTERN void	lws_conmon_release (struct lws_conmon *conmon)

Detailed Description

Connection Latency information

When LWS_WITH_CONMON is enabled at build, collects detailed statistics about the client connection setup latency, available to the connection itself

---

Data Structure Documentation

lws_conmon

struct lws_conmon

Definition at line 81 of file lws-conmon.h.

Collaboration diagram for lws_conmon:

Data Fields
lws_sockaddr46	peer46	The peer we actually connected to, if any. .peer46.sa4.sa_family is either 0 if invalid, or the AF_
union lws_conmon	protocol_specific	possibly-present protocol-specific additional information. This is only valid for the first transaction after connection and does not capture results for persistent or muxed connections like ws messages, mqtt messages, or h2 streams
struct addrinfo *	dns_results_copy	NULL, or Allocated copy of dns results, owned by this object and freed when object destroyed. Only set if client flag LCCSCF_CONMON applied
lws_conmon_interval_us_t	ciu_dns	0, or if a socket connection, us taken to acquire this DNS response
lws_conmon_interval_us_t	ciu_sockconn	0, or if connection-based, the us interval between the socket connect() attempt that succeeded, and the connection setup
lws_conmon_interval_us_t	ciu_tls	0 if no tls, or us taken to establish the tls tunnel
lws_conmon_interval_us_t	ciu_txn_resp	0, or if the protocol supports transactions, the interval between sending the initial transaction request and starting to receive the response
lws_conmon_pcol_t	pcol	indicates which extra protocol_specific info member is valid, if any
lws_conmon_dns_disposition_t	dns_disposition	indicates general disposition of DNS request

lws_conmon.protocol_specific

union lws_conmon.protocol_specific

Definition at line 86 of file lws-conmon.h.

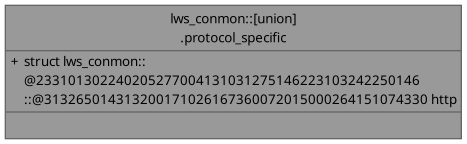

Collaboration diagram for lws_conmon.protocol_specific:

Data Fields
protocol_specific	http

lws_conmon.protocol_specific.http

struct lws_conmon.protocol_specific.http

Definition at line 87 of file lws-conmon.h.

Collaboration diagram for lws_conmon.protocol_specific.http:

Data Fields
int	response	h1 http response code

Typedef Documentation

lws_conmon_interval_us_t

typedef uint32_t lws_conmon_interval_us_t

#include <include/libwebsockets/lws-conmon.h>

Definition at line 35 of file lws-conmon.h.

lws_conmon_pcol_t

typedef enum lws_conmon_pcol lws_conmon_pcol_t

#include <include/libwebsockets/lws-conmon.h>

lws_conmon_dns_disposition_t

typedef enum lws_conmon_dns_disposition lws_conmon_dns_disposition_t

#include <include/libwebsockets/lws-conmon.h>

Enumeration Type Documentation

lws_conmon_pcol

enum lws_conmon_pcol

#include <include/libwebsockets/lws-conmon.h>

Enumerator
LWSCONMON_PCOL_NONE
LWSCONMON_PCOL_HTTP

Definition at line 65 of file lws-conmon.h.

                             {
        LWSCONMON_PCOL_NONE,
        LWSCONMON_PCOL_HTTP, /* .protocol_specific.http is valid */
} lws_conmon_pcol_t;

lws_conmon_dns_disposition

enum lws_conmon_dns_disposition

#include <include/libwebsockets/lws-conmon.h>

Enumerator
LWSCONMON_DNS_NONE	did not attempt DNS
LWSCONMON_DNS_OK	DNS lookup did give results
LWSCONMON_DNS_SERVER_UNREACHABLE	DNS server was not reachable
LWSCONMON_DNS_NO_RESULT	DNS server replied but nothing usable

Definition at line 70 of file lws-conmon.h.

                                        {
        LWSCONMON_DNS_NONE,
        LWSCONMON_DNS_OK                                = 1,
        LWSCONMON_DNS_SERVER_UNREACHABLE                = 2,
        LWSCONMON_DNS_NO_RESULT                         = 3
} lws_conmon_dns_disposition_t;

Function Documentation

lws_conmon_wsi_take()

LWS_VISIBLE LWS_EXTERN void lws_conmon_wsi_take	(	struct lws *	wsi,
		struct lws_conmon *	dest
	)

#include <include/libwebsockets/lws-conmon.h>

lws_conmon_wsi_take() - create a connection latency object from client wsi

Parameters

context	lws wsi
dest	conmon struct to fill

Copies wsi conmon data into the caller's struct. Passes ownership of any allocations in the addrinfo list to the caller, lws will not delete that any more on wsi close after this call. The caller must call lws_conmon_release() on the struct to destroy any addrinfo in the struct that is prepared by this eventually but it can defer it as long as it wants.

Other than the addrinfo list, the contents of the returned object are completely selfcontained and don't point outside of the object itself, ie, everything else in there remains in scope while the object itself does.

lws_conmon_release()

LWS_VISIBLE LWS_EXTERN void lws_conmon_release

(

struct lws_conmon *

conmon

)

#include <include/libwebsockets/lws-conmon.h>

lws_conmon_release() - free any allocations in the conmon struct

Parameters

conmon

pointer to conmon struct

Destroys any allocations in the conmon struct so it can go out of scope. It doesn't free dest itself, it's designed to clean out a struct that is on the stack or embedded in another object.
