This graph shows which files directly or indirectly include this file:

Data Structures
struct	lws_cgi_args

struct	lws_cgi_info

Enumerations
enum	lws_enum_stdinouterr { LWS_STDIN = 0 , LWS_STDOUT = 1 , LWS_STDERR = 2 }

enum	lws_cgi_hdr_state { LCHS_HEADER , LCHS_CR1 , LCHS_LF1 , LCHS_CR2 , LCHS_LF2 , LHCS_RESPONSE , LHCS_DUMP_HEADERS , LHCS_PAYLOAD , LCHS_SINGLE_0A }

Data Structure Documentation

◆ lws_cgi_args

struct lws_cgi_args

Definition at line 53 of file lws-cgi.h.

Collaboration diagram for lws_cgi_args:

Data Fields
struct lws **	stdwsi	get fd with lws_get_socket_fd()
enum lws_enum_stdinouterr	ch	channel index
unsigned char *	data	for messages with payload
enum lws_cgi_hdr_state	hdr_state	track where we are in cgi headers
int	len	length

◆ lws_cgi_info

struct lws_cgi_info

struct lws_cgi_info - parameters to spawn network-connected cgi process when using lws_cgi_via_info()

Definition at line 63 of file lws-cgi.h.

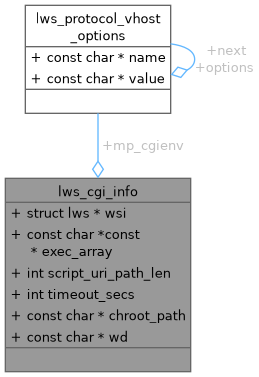

Collaboration diagram for lws_cgi_info:

Data Fields
struct lws *	wsi	connection to own the process
const char const	exec_array	array of "exec-name" "arg1" ... "argn" NULL
int	script_uri_path_len	how many chars on the left of the uri are the path to the cgi, or -1 to spawn without URL-related env vars
int	timeout_secs	seconds script should be allowed to run
const struct lws_protocol_vhost_options *	mp_cgienv	pvo list with per-vhost cgi options to put in env
const char *	chroot_path	NULL, or chroot patch for child process
const char *	wd	working directory to cd to after fork, NULL defaults to /tmp

Enumeration Type Documentation

◆ lws_enum_stdinouterr

enum lws_enum_stdinouterr

Enumerator
LWS_STDIN
LWS_STDOUT
LWS_STDERR

Definition at line 35 of file lws-cgi.h.

                          {
        LWS_STDIN = 0,
        LWS_STDOUT = 1,
        LWS_STDERR = 2,
};

◆ lws_cgi_hdr_state

enum lws_cgi_hdr_state

Enumerator
LCHS_HEADER
LCHS_CR1
LCHS_LF1
LCHS_CR2
LCHS_LF2
LHCS_RESPONSE
LHCS_DUMP_HEADERS
LHCS_PAYLOAD
LCHS_SINGLE_0A

Definition at line 41 of file lws-cgi.h.

                       {
        LCHS_HEADER,
        LCHS_CR1,
        LCHS_LF1,
        LCHS_CR2,
        LCHS_LF2,
        LHCS_RESPONSE,
        LHCS_DUMP_HEADERS,
        LHCS_PAYLOAD,
        LCHS_SINGLE_0A,
};
