This graph shows which files directly or indirectly include this file:

Data Structures
struct	lws_txp_path_client

struct	lws_txp_path_proxy

struct	lws_transport_client_ops

struct	lws_transport_proxy_ops

struct	lws_transport_mux_ch

struct	lws_transport_info

struct	lws_transport_mux

struct	lws_txp_mux_parse_cbs

Macros
#define	LWSSSS_VERSION 1

#define	LWS_MUCH_RANGE 256

#define	LWS_TRANSPORT_MUXCH_MAGIC LWS_FOURCC('T', 'm', 'C', 'h')

#define	assert_is_tmch(_tm)

#define	LWSTMINFO_SERVER (1 << 0)

#define	LWS_TRANSPORT_MUX_MAGIC LWS_FOURCC('I', 's', 'T', 'M')

#define	assert_is_tm(_tm)

#define	lws_transport_path_client_dump(_a, _b)

#define	lws_transport_path_proxy_dump(_a, _b)

Typedefs
typedef void *	lws_transport_priv_t

typedef struct lws_txp_path_client	lws_txp_path_client_t

typedef struct lws_txp_path_proxy	lws_txp_path_proxy_t

typedef struct lws_transport_client_ops	lws_transport_client_ops_t

typedef struct lws_transport_proxy_ops	lws_transport_proxy_ops_t

typedef uint8_t	lws_mux_ch_idx_t

typedef struct lws_transport_mux_ch	lws_transport_mux_ch_t

typedef struct lws_transport_info	lws_transport_info_t

typedef struct lws_transport_mux	lws_transport_mux_t

typedef struct lws_txp_mux_parse_cbs	lws_txp_mux_parse_cbs_t

Enumerations
enum	lws_sss_cmds_t { LWSSS_SER_RXPRE_RX_PAYLOAD = 0x55 , LWSSS_SER_RXPRE_CREATE_RESULT , LWSSS_SER_RXPRE_CONNSTATE , LWSSS_SER_RXPRE_TXCR_UPDATE , LWSSS_SER_RXPRE_METADATA , LWSSS_SER_RXPRE_TLSNEG_ENCLAVE_SIGN , LWSSS_SER_RXPRE_PERF , LWSSS_SER_TXPRE_STREAMTYPE = 0xaa , LWSSS_SER_TXPRE_ONWARD_CONNECT , LWSSS_SER_TXPRE_DESTROYING , LWSSS_SER_TXPRE_TX_PAYLOAD , LWSSS_SER_TXPRE_METADATA , LWSSS_SER_TXPRE_TXCR_UPDATE , LWSSS_SER_TXPRE_TIMEOUT_UPDATE , LWSSS_SER_TXPRE_PAYLOAD_LENGTH_HINT , LWSSS_SER_TXPRE_TLSNEG_ENCLAVE_SIGNED , LWSSS_SER_TXPRE_LINK_VALIDITY_PROBE }

enum	lws_ss_conn_states_t { LPCSPROX_WAIT_INITIAL_TX = 1 , LPCSPROX_REPORTING_FAIL , LPCSPROX_REPORTING_OK , LPCSPROX_OPERATIONAL , LPCSPROX_DESTROYED , LPCSCLI_SENDING_INITIAL_TX , LPCSCLI_WAITING_CREATE_RESULT , LPCSCLI_LOCAL_CONNECTED , LPCSCLI_ONWARD_CONNECT , LPCSCLI_OPERATIONAL }

enum	{ LWSSSS_LLM_CHANNEL_REQ = 0xf0 , LWSSSS_LLM_CHANNEL_ACK , LWSSSS_LLM_CHANNEL_NACK , LWSSSS_LLM_CHANNEL_CLOSE , LWSSSS_LLM_CHANNEL_CLOSE_ACK , LWSSSS_LLM_MUX , LWSSSS_LLM_PING , LWSSSS_LLM_PONG , LWSSSS_LLM_PONGACK , LWSSSS_LLM_RESET_TRANSPORT }

enum	lwstmc_parser { LWSTMCPAR_CMD , LWSTMCPAR_CHIDX_DONE , LWSTMCPAR_CHIDX , LWSTMCPAR_PLENH , LWSTMCPAR_PLENL , LWSTMCPAR_PAY , LWSTMCPAR_T64_1 , LWSTMCPAR_T64_2 }

enum	{ LWSTMC_PENDING_CREATE_CHANNEL , LWSTMC_AWAITING_CREATE_CHANNEL_ACK , LWSTMC_PENDING_CREATE_CHANNEL_NACK , LWSTMC_PENDING_CREATE_CHANNEL_ACK , LWSTMC_OPERATIONAL , LWSTMC_PENDING_CLOSE_CHANNEL , LWSTMC_AWAITING_CLOSE_CHANNEL_ACK , LWSTMC_PENDING_CLOSE_CHANNEL_ACK }

enum	{ LWSTM_TRANSPORT_DOWN , LWSTM_OPERATIONAL }

Functions
lws_transport_mux_t *	lws_transport_mux_create (struct lws_context cx, lws_transport_info_t info, void *txp_handle)

void	lws_transport_mux_destroy (lws_transport_mux_t **tm)

void	lws_transport_mux_request_tx (lws_transport_mux_t *tm)

int	lws_transport_mux_rx_parse (lws_transport_mux_t tm, const uint8_t buf, size_t len, const lws_txp_mux_parse_cbs_t *cbs)

int	lws_transport_mux_pending (lws_transport_mux_t tm, uint8_t buf, size_t len, const lws_txp_mux_parse_cbs_t cbs)

Variables
const lws_transport_client_ops_t	lws_transport_mux_client_ops

const lws_transport_proxy_ops_t	lws_transport_mux_proxy_ops

const lws_transport_client_ops_t	lws_txp_inside_sspc

const lws_transport_proxy_ops_t	lws_txp_inside_proxy

Data Structure Documentation

◆ lws_txp_path_client

struct lws_txp_path_client

Definition at line 335 of file lws-secure-streams-serialization.h.

Collaboration diagram for lws_txp_path_client:

Data Fields
const struct lws_transport_client_ops *	ops_in
lws_transport_priv_t	priv_in
const struct lws_transport_client_ops *	ops_onw
lws_transport_priv_t	priv_onw
struct lws_transport_mux *	mux

◆ lws_txp_path_proxy

struct lws_txp_path_proxy

Definition at line 343 of file lws-secure-streams-serialization.h.

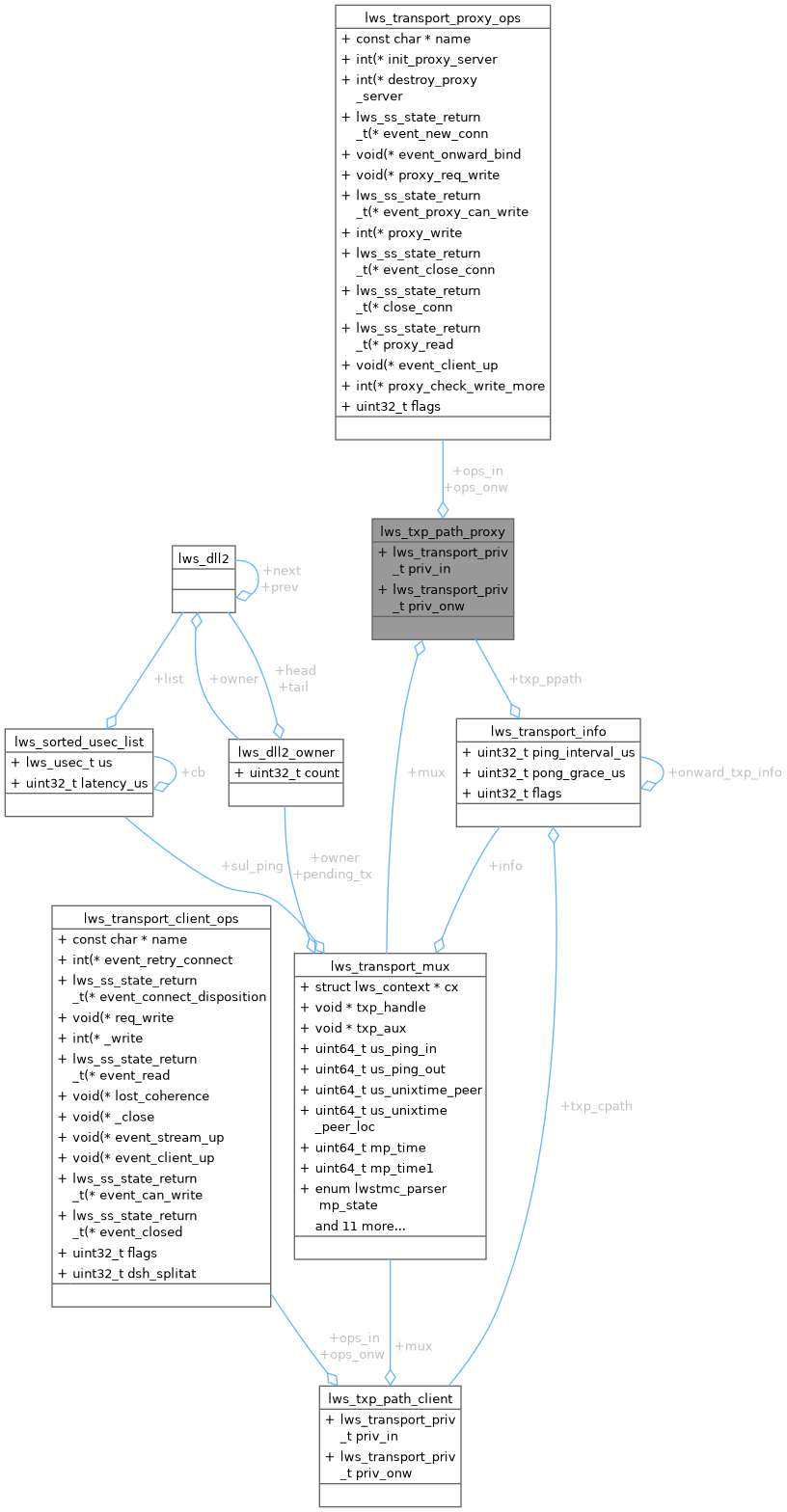

Collaboration diagram for lws_txp_path_proxy:

Data Fields
const struct lws_transport_proxy_ops *	ops_in
lws_transport_priv_t	priv_in
const struct lws_transport_proxy_ops *	ops_onw
lws_transport_priv_t	priv_onw
struct lws_transport_mux *	mux

◆ lws_transport_client_ops

struct lws_transport_client_ops

Definition at line 355 of file lws-secure-streams-serialization.h.

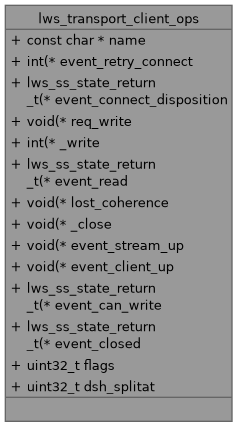

Collaboration diagram for lws_transport_client_ops:

Data Fields
const char *	name
int()(lws_txp_path_client_t path, struct lws_sspc_handle *h)	event_retry_connect	Attempt to create a new connection / channel to the proxy
lws_ss_state_return_t()(struct lws_sspc_handle h, int disposition)	event_connect_disposition	Connection attempt result, disposition 9 = success, else failed
void(*)(lws_transport_priv_t priv)	req_write	Request a write to the proxy on this channel
int()(lws_transport_priv_t priv, uint8_t buf, size_t len)	_write	Write the requested data on the channel to the proxy *** MUST have LWS_PRE usable behind buf
lws_ss_state_return_t()(lws_transport_priv_t priv, const uint8_t buf, size_t len)	event_read	len bytes at buf have been received
void(*)(lws_transport_priv_t priv)	lost_coherence	report that the framing inside the mux channel is broken
void(*)(lws_transport_priv_t priv)	_close	Close the channel to the proxy
void(*)(lws_transport_priv_t priv)	event_stream_up	Called when a new channel to the proxy is acknowledged as up
void(*)(lws_transport_priv_t priv)	event_client_up	Called when a client channel is acknowledged as up
lws_ss_state_return_t()(struct lws_sspc_handle h, size_t metadata_limit)	event_can_write	Called when possible to write on the transport, after req_write
lws_ss_state_return_t(*)(lws_transport_priv_t priv)	event_closed	we notice an onward proxy connection had closed
uint32_t	flags	Used for DSH creation flags
uint32_t	dsh_splitat

◆ lws_transport_proxy_ops

struct lws_transport_proxy_ops

Definition at line 394 of file lws-secure-streams-serialization.h.

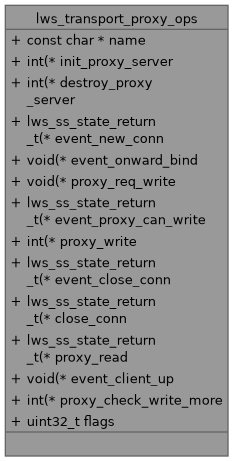

Collaboration diagram for lws_transport_proxy_ops:

Data Fields
const char *	name
int()(struct lws_context context, const struct lws_transport_proxy_ops txp_ops_inward, lws_transport_priv_t txp_priv_inward, lws_txp_path_proxy_t txp_ppath, const void aux, const char bind, int port)	init_proxy_server	Instantiate a proxy transport... bind/port are as shown for wsi transport, but may be overloaded to provide transport-specific init
int()(struct lws_context context)	destroy_proxy_server
lws_ss_state_return_t()(struct lws_context cx, const struct lws_transport_proxy_ops txp_ops_inward, lws_transport_priv_t txp_priv_inward, struct lws_sss_proxy_conn *conn, lws_transport_priv_t txp_priv)	event_new_conn	proxy has received a new connection from client
void()(lws_transport_priv_t priv, struct lws_ss_handle h)	event_onward_bind	Called when the proxy creates an onward SS for a client channel
void(*)(lws_transport_priv_t priv)	proxy_req_write	Request a write to the proxy on this channel
lws_ss_state_return_t(*)(lws_transport_priv_t priv)	event_proxy_can_write	Transport can now be written on, after earlier proxy_req_write
int()(lws_transport_priv_t priv, uint8_t buf, size_t *len)	proxy_write	Write the requested data on the channel to the proxy *** MUST have LWS_PRE usable behind buf. May do partial writes, len is set on return to actual length written
lws_ss_state_return_t()(struct lws_sss_proxy_conn conn)	event_close_conn	proxy sees an existing conn closes
lws_ss_state_return_t()(struct lws_sss_proxy_conn conn)	close_conn	called to handle closure of underlying transport
lws_ss_state_return_t()(lws_transport_priv_t priv, const uint8_t buf, size_t len)	proxy_read
void(*)(lws_transport_priv_t priv)	event_client_up	Called when the proxy has accepted a new client conn
int(*)(lws_transport_priv_t priv)	proxy_check_write_more	optional, allows checking if we can write again
uint32_t	flags

◆ lws_transport_mux_ch

struct lws_transport_mux_ch

Definition at line 483 of file lws-secure-streams-serialization.h.

Collaboration diagram for lws_transport_mux_ch:

Data Fields
lws_dll2_t	list
lws_dll2_t	list_pending_tx
lws_transport_priv_t	priv
lws_sorted_usec_list_t	sul
void *	opaque
lws_mux_ch_idx_t	ch_idx
uint8_t	state
uint8_t	server:1

◆ lws_transport_info

struct lws_transport_info

Definition at line 504 of file lws-secure-streams-serialization.h.

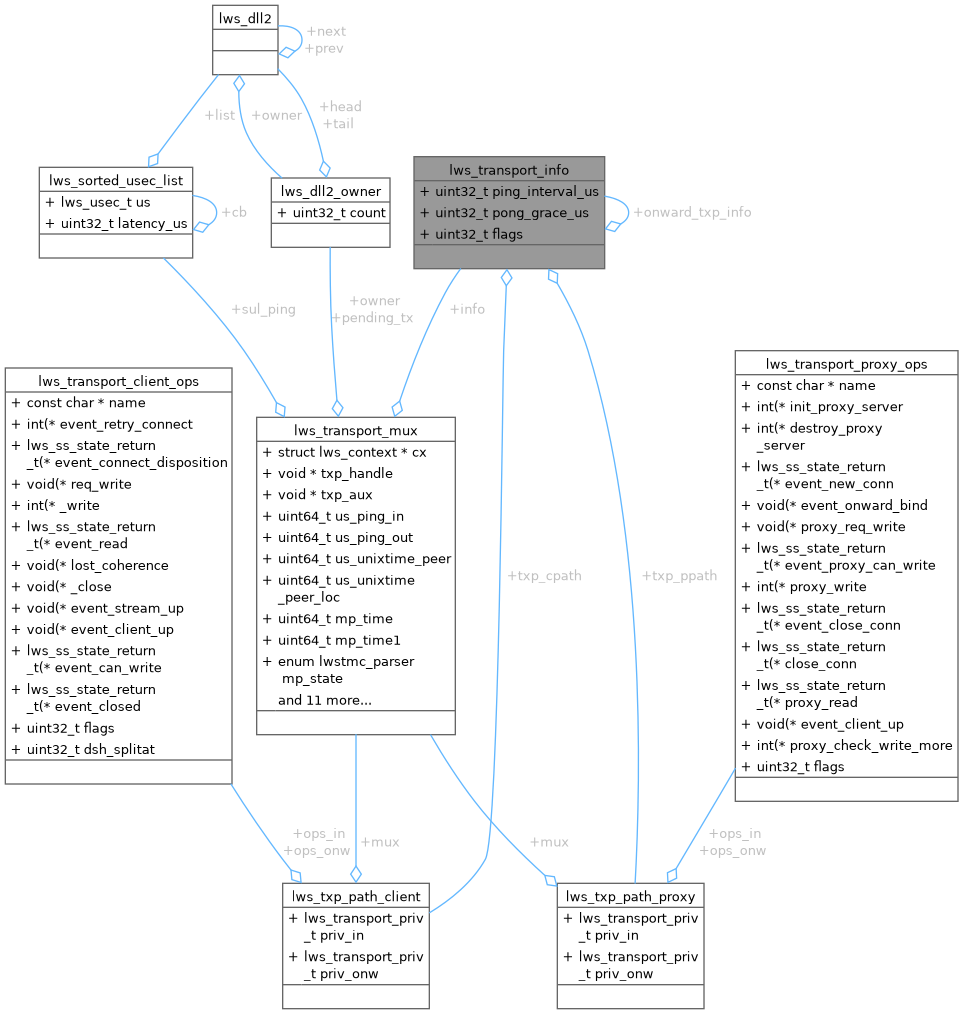

Collaboration diagram for lws_transport_info:

Data Fields
uint32_t	ping_interval_us	us inbetween transport mux sending pings on transport
uint32_t	pong_grace_us	us we should wait for pong before assuming transport down
lws_txp_path_client_t	txp_cpath
lws_txp_path_proxy_t	txp_ppath
struct lws_transport_info *	onward_txp_info
uint32_t	flags

◆ lws_transport_mux

struct lws_transport_mux

Definition at line 518 of file lws-secure-streams-serialization.h.

Collaboration diagram for lws_transport_mux:

Data Fields
struct lws_context *	cx
lws_transport_info_t	info
lws_sorted_usec_list_t	sul_ping
void *	txp_handle
void *	txp_aux
uint64_t	us_ping_in
uint64_t	us_ping_out
uint64_t	us_unixtime_peer
uint64_t	us_unixtime_peer_loc
uint64_t	mp_time
uint64_t	mp_time1
enum lwstmc_parser	mp_state
uint32_t	mp_pay
uint8_t	mp_cmd
lws_mux_ch_idx_t	mp_idx
uint8_t	mp_ctr
uint32_t	_open[LWS_MUCH_RANGE/32]
uint32_t	fin[LWS_MUCH_RANGE/32]
lws_dll2_owner_t	pending_tx
lws_dll2_owner_t	owner
uint8_t	link_state
uint8_t	issue_ping:1
uint8_t	issue_pong:1
uint8_t	issue_pongack:1
uint8_t	awaiting_pong:1

◆ lws_txp_mux_parse_cbs

struct lws_txp_mux_parse_cbs

Definition at line 573 of file lws-secure-streams-serialization.h.

Collaboration diagram for lws_txp_mux_parse_cbs:

Data Fields
int()(lws_transport_mux_ch_t tmc, const uint8_t *buf, size_t len)	payload
int()(lws_transport_mux_ch_t tmc, int determination)	ch_opens
int()(lws_transport_mux_ch_t tmc)	ch_closes
void()(lws_transport_mux_t tm)	txp_req_write
int()(lws_transport_mux_ch_t tmc)	txp_can_write

Macro Definition Documentation

◆ LWSSSS_VERSION

#define LWSSSS_VERSION 1

Definition at line 38 of file lws-secure-streams-serialization.h.

◆ LWS_MUCH_RANGE

#define LWS_MUCH_RANGE 256

Definition at line 463 of file lws-secure-streams-serialization.h.

◆ LWS_TRANSPORT_MUXCH_MAGIC

#define LWS_TRANSPORT_MUXCH_MAGIC LWS_FOURCC('T', 'm', 'C', 'h')

Definition at line 480 of file lws-secure-streams-serialization.h.

◆ assert_is_tmch

#define assert_is_tmch ( _tm )

Value:

lws_assert_fourcc(_tm->magic, LWS_TRANSPORT_MUXCH_MAGIC)

lws_assert_fourcc

#define lws_assert_fourcc(_a, _b)

Definition lws-misc.h:970

LWS_TRANSPORT_MUXCH_MAGIC

#define LWS_TRANSPORT_MUXCH_MAGIC

Definition lws-secure-streams-serialization.h:480

Definition at line 481 of file lws-secure-streams-serialization.h.

◆ LWSTMINFO_SERVER

#define LWSTMINFO_SERVER (1 << 0)

Definition at line 502 of file lws-secure-streams-serialization.h.

◆ LWS_TRANSPORT_MUX_MAGIC

#define LWS_TRANSPORT_MUX_MAGIC LWS_FOURCC('I', 's', 'T', 'M')

Definition at line 515 of file lws-secure-streams-serialization.h.

◆ assert_is_tm

#define assert_is_tm ( _tm )

Value:

lws_assert_fourcc(_tm->magic, LWS_TRANSPORT_MUX_MAGIC)

LWS_TRANSPORT_MUX_MAGIC

#define LWS_TRANSPORT_MUX_MAGIC

Definition lws-secure-streams-serialization.h:515

Definition at line 516 of file lws-secure-streams-serialization.h.

◆ lws_transport_path_client_dump

#define lws_transport_path_client_dump	(		_a,
			_b )

Definition at line 565 of file lws-secure-streams-serialization.h.

◆ lws_transport_path_proxy_dump

#define lws_transport_path_proxy_dump	(		_a,
			_b )

Definition at line 566 of file lws-secure-streams-serialization.h.

Typedef Documentation

◆ lws_transport_priv_t

typedef void* lws_transport_priv_t

Definition at line 314 of file lws-secure-streams-serialization.h.

◆ lws_txp_path_client_t

typedef struct lws_txp_path_client lws_txp_path_client_t

◆ lws_txp_path_proxy_t

typedef struct lws_txp_path_proxy lws_txp_path_proxy_t

◆ lws_transport_client_ops_t

typedef struct lws_transport_client_ops lws_transport_client_ops_t

◆ lws_transport_proxy_ops_t

typedef struct lws_transport_proxy_ops lws_transport_proxy_ops_t

◆ lws_mux_ch_idx_t

typedef uint8_t lws_mux_ch_idx_t

Definition at line 462 of file lws-secure-streams-serialization.h.

◆ lws_transport_mux_ch_t

typedef struct lws_transport_mux_ch lws_transport_mux_ch_t

◆ lws_transport_info_t

typedef struct lws_transport_info lws_transport_info_t

◆ lws_transport_mux_t

typedef struct lws_transport_mux lws_transport_mux_t

◆ lws_txp_mux_parse_cbs_t

typedef struct lws_txp_mux_parse_cbs lws_txp_mux_parse_cbs_t

Enumeration Type Documentation

◆ lws_sss_cmds_t

enum lws_sss_cmds_t

Enumerator
LWSSS_SER_RXPRE_RX_PAYLOAD
LWSSS_SER_RXPRE_CREATE_RESULT
LWSSS_SER_RXPRE_CONNSTATE
LWSSS_SER_RXPRE_TXCR_UPDATE
LWSSS_SER_RXPRE_METADATA
LWSSS_SER_RXPRE_TLSNEG_ENCLAVE_SIGN
LWSSS_SER_RXPRE_PERF
LWSSS_SER_TXPRE_STREAMTYPE
LWSSS_SER_TXPRE_ONWARD_CONNECT
LWSSS_SER_TXPRE_DESTROYING
LWSSS_SER_TXPRE_TX_PAYLOAD
LWSSS_SER_TXPRE_METADATA
LWSSS_SER_TXPRE_TXCR_UPDATE
LWSSS_SER_TXPRE_TIMEOUT_UPDATE
LWSSS_SER_TXPRE_PAYLOAD_LENGTH_HINT
LWSSS_SER_TXPRE_TLSNEG_ENCLAVE_SIGNED
LWSSS_SER_TXPRE_LINK_VALIDITY_PROBE

Definition at line 40 of file lws-secure-streams-serialization.h.

             {
        /*
         * This is the Serialized Serure Streams framing.  It's sufficient to
         * carry all SS API actions over a point-to-point bytestream between
         * an SSPC client and an SS oroxy, in both directions.
         *
         * These serialized streams may be multiplexed by the transport (eg,
         * for unix domain sockets transport, each SS opens its own UDS socket
         * to the proxy) or via lws_transport_mux framing encapsulation.
         *
         *
         * Framing for Proxy -> Client direction
         */

        LWSSS_SER_RXPRE_RX_PAYLOAD                            = 0x55,
        /*
         * Proxied rx
         *
         *   -  0: LWSSS_SER_RXPRE_RX_PAYLOAD
         *   -  1: 2 byte MSB-first rest-of-frame length
         *   -  3: 4-byte MSB-first flags
         *   -  7: 4-byte MSB-first us between inbound read and wrote to client
         *   - 11: 8-byte MSB-first us resolution unix time proxy wrote to client
         *   - 17: (rideshare name len + rideshare name if flags &
         *              LWSSS_FLAG_RIDESHARE) payload
         */
        LWSSS_SER_RXPRE_CREATE_RESULT,
        /*
         * Proxied connection setup result
         *
         *   -  0: LWSSS_SER_RXPRE_CREATE_RESULT
         *   -  1: 2 byte MSB-first rest-of-frame length (usually 00, 03)
         *   -  3: 1 byte result, 0 = success.  On failure, proxy will close
         *              connection.
         *   -  4: 4 byte client dsh allocation recommended for stream type,
         *              from policy (introduced in SSSv1)
         *   -  8: 2 byte MSB-first initial tx credit
         *   - 10: if present, comma-sep list of rideshare types from policy
         */
        LWSSS_SER_RXPRE_CONNSTATE,
        /*
         * Proxied state (8 or 11 byte packet)
         *
         *   -  0: LWSSS_SER_RXPRE_CONNSTATE
         *   -  1: 00, 05 if state < 256, else 00, 08
         *   -  3: 1 byte state index if state < 256, else 4-byte MSB-first
         *              state index
         *   -  4 or 7: 4-byte MSB-first ordinal
         */
        LWSSS_SER_RXPRE_TXCR_UPDATE,
        /*
         * Proxied tx credit
         *
         *   -  0: LWSSS_SER_RXPRE_TXCR_UPDATE
         *   -  1: 00, 04
         *   -  3: 4-byte MSB-first addition tx credit bytes
         */
        LWSSS_SER_RXPRE_METADATA,
        /*
         * Proxied rx metadata
         *
         *   -  0: LWSSS_SER_RXPRE_METADATA
         *   -  1: 2-byte MSB-first rest-of-frame length
         *   -  3: 1-byte metadata name length
         *   -  4: metadata name
         *   -  ...: metadata value (for rest of packet)
         */
        LWSSS_SER_RXPRE_TLSNEG_ENCLAVE_SIGN,
        /* reserved */
        LWSSS_SER_RXPRE_PERF,
        /*
         * Proxied performance information
         *
         *   -  0: LWSSS_SER_RXPRE_PERF
         *   -  1: 2-byte MSB-first rest-of-frame length
         *   -  3: ... performance JSON (for rest of packet)
         */

        /*
         * Framing for Client -> Proxy direction
         */

        LWSSS_SER_TXPRE_STREAMTYPE                            = 0xaa,
        /*
         * Proxied connection setup
         *
         *   -  0: LWSSS_SER_TXPRE_STREAMTYPE
         *   -  1: 2-byte MSB-first rest-of-frame length
         *   -  3: 1-byte Client SSS protocol version (introduced in SSSv1)
         *   -  4: 4-byte Client PID (introduced in SSSv1)
         *   -  8: 4-byte MSB-first initial tx credit
         *   - 12: the streamtype name with no NUL
         */
        LWSSS_SER_TXPRE_ONWARD_CONNECT,
        /*
         * Proxied request for onward connection
         *
         *   -  0: LWSSS_SER_TXPRE_ONWARD_CONNECT
         *   -  1: 00, 00
         */
        LWSSS_SER_TXPRE_DESTROYING,
        /*
         * Proxied secure stream destroy
         *
         *   -  0: LWSSS_SER_TXPRE_DESTROYING
         *   -  1: 00, 00
         */
        LWSSS_SER_TXPRE_TX_PAYLOAD,
        /*
         * Proxied tx
         *
         *   -  0: LWSSS_SER_TXPRE_TX_PAYLOAD
         *   -  1: 2 byte MSB-first rest-of-frame length
         *   -  3: 4-byte MSB-first flags
         *   -  7: 4-byte MSB-first us between client requested write and wrote
         *                          to proxy
         *   - 11: 8-byte MSB-first us resolution unix time client wrote to proxy
         *   - 19: ...payload  (for rest of packet)
         */
        LWSSS_SER_TXPRE_METADATA,
        /*
         * Proxied metadata - sent when one metadata item set clientside
         *
         *   -  0: LWSSS_SER_TXPRE_METADATA
         *   -  1: 2-byte MSB-first rest-of-frame length
         *   -  3: 1-byte metadata name length
         *   -  4: metadata name
         *   -  ...: metadata value (for rest of packet)
         */
        LWSSS_SER_TXPRE_TXCR_UPDATE,
        /*
         * TX credit management - sent when using tx credit apis, cf METADATA
         *
         *   - 0: LWSSS_SER_TXPRE_TXCR_UPDATE
         *   - 1: 2-byte MSB-first rest-of-frame length 00, 04
         *   - 3: 4-byte additional tx credit adjust value
         */
        LWSSS_SER_TXPRE_TIMEOUT_UPDATE,
        /*
         * Stream timeout management - forwarded when user applying or
         *      cancelling t.o.
         *
         *   -  0: LWSSS_SER_TXPRE_TIMEOUT_UPDATE
         *   -  1: 2-byte MSB-first rest-of-frame length 00, 04
         *   -  3: 4-byte MSB-first unsigned 32-bit timeout,
         *                      0 = use policy, -1 = cancel
         */
        LWSSS_SER_TXPRE_PAYLOAD_LENGTH_HINT,
        /*
         * Passing up payload length hint
         *
         *   -  0: LWSSS_SER_TXPRE_PAYLOAD_LENGTH_HINT
         *   -  1: 2-byte MSB-first rest-of-frame length 00, 04
         *   -  3: 4-byte MSB-first unsigned 32-bit payload length hint
         */
        LWSSS_SER_TXPRE_TLSNEG_ENCLAVE_SIGNED,
        /* reserved */
        LWSSS_SER_TXPRE_LINK_VALIDITY_PROBE,
} lws_sss_cmds_t;

◆ lws_ss_conn_states_t

enum lws_ss_conn_states_t

Enumerator
LPCSPROX_WAIT_INITIAL_TX
LPCSPROX_REPORTING_FAIL
LPCSPROX_REPORTING_OK
LPCSPROX_OPERATIONAL
LPCSPROX_DESTROYED
LPCSCLI_SENDING_INITIAL_TX
LPCSCLI_WAITING_CREATE_RESULT
LPCSCLI_LOCAL_CONNECTED
LPCSCLI_ONWARD_CONNECT
LPCSCLI_OPERATIONAL

Definition at line 202 of file lws-secure-streams-serialization.h.

              {
        LPCSPROX_WAIT_INITIAL_TX = 1, /* after connect, must send streamtype */
        LPCSPROX_REPORTING_FAIL, /* stream creation failed, wait to to tell */
        LPCSPROX_REPORTING_OK, /* stream creation succeeded, wait to to tell */
        LPCSPROX_OPERATIONAL, /* ready for payloads */
        LPCSPROX_DESTROYED,

        LPCSCLI_SENDING_INITIAL_TX,  /* after connect, must send streamtype */
        LPCSCLI_WAITING_CREATE_RESULT,   /* wait to hear if proxy ss create OK */
        LPCSCLI_LOCAL_CONNECTED,       /* we are in touch with the proxy */
        LPCSCLI_ONWARD_CONNECT,         /* request onward ss connection */
        LPCSCLI_OPERATIONAL, /* ready for payloads */

 } lws_ss_conn_states_t;

◆ anonymous enum

anonymous enum

Enumerator
LWSSSS_LLM_CHANNEL_REQ	Either side proposes to open a new mux channel 0: LWSSSS_LLM_CHANNEL_REQ 1: 1-byte mux channel index, client initiated: first free from zero up, server initiated: first free from 0xff down
LWSSSS_LLM_CHANNEL_ACK	Positive response to earlier LWSSSS_LLM_CHANNEL_REQ 0: LWSSSS_LLM_CHANNEL_ACK 1: 1-byte mux channel index, from the reqyuest
LWSSSS_LLM_CHANNEL_NACK	Negative response to earlier LWSSSS_LLM_CHANNEL_REQ. This also acts as a FIN if one arrives on a channel unsolicited. 0: LWSSSS_LLM_CHANNEL_NACK 1: 1-byte mux channel index, from the reqyuest
LWSSSS_LLM_CHANNEL_CLOSE	Either side informs peer it is closing a mux channel 0: LWSSSS_LLM_CHANNEL_CLOSE 1: 1-byte mux channel index
LWSSSS_LLM_CHANNEL_CLOSE_ACK	Peer acknowledges closing a mux channel, so it can be reused 0: LWSSSS_LLM_CHANNEL_CLOSE_ACK 1: 1-byte mux channel index
LWSSSS_LLM_MUX	Encapsulate data on an open mux channel 0: LWSSSS_LLM_MUX 1: 1-byte mux channel index 2: 2-byte MSB-first rest-of-frame length 4... mux payload
LWSSSS_LLM_PING	Either side wants to validate communication on mux transport 0: LWSSSS_LLM_PING 1: 8-byte MSB-first us resolution unix time this was issued
LWSSSS_LLM_PONG	Either side responds to peer's PING. 0: LWSSSS_LLM_PONG 1: 8-byte MSB-first us resolution unix time from PING 9: 8-byte MSB-first us resolution unix time this PONG sent
LWSSSS_LLM_PONGACK	When the original PING sender receives a PONG, it immediately sends a PINGACK, which is not replied to. This allows the other side to also know the connection is valid in both directions, with only one side needing to issue PINGs. It also synchronizes both sides' understanding of the transport validity in one transaction. 0: LWSSSS_LLM_PONGACK 1: 8-byte MSB-first us resolution unix time from PING
LWSSSS_LLM_RESET_TRANSPORT	Either side can issue this to indicate they no longer trust the transport link. They should close all their channels and enter a state trying to resync using 3-way PINGs

Definition at line 231 of file lws-secure-streams-serialization.h.

      {
         LWSSSS_LLM_CHANNEL_REQ                                   = 0xf0,
         LWSSSS_LLM_CHANNEL_ACK,
         LWSSSS_LLM_CHANNEL_NACK,
         LWSSSS_LLM_CHANNEL_CLOSE,
         LWSSSS_LLM_CHANNEL_CLOSE_ACK,
         LWSSSS_LLM_MUX,
         LWSSSS_LLM_PING,
         LWSSSS_LLM_PONG,
         LWSSSS_LLM_PONGACK,
         LWSSSS_LLM_RESET_TRANSPORT,
};

◆ lwstmc_parser

enum lwstmc_parser

Enumerator
LWSTMCPAR_CMD
LWSTMCPAR_CHIDX_DONE
LWSTMCPAR_CHIDX
LWSTMCPAR_PLENH
LWSTMCPAR_PLENL
LWSTMCPAR_PAY
LWSTMCPAR_T64_1
LWSTMCPAR_T64_2

Definition at line 449 of file lws-secure-streams-serialization.h.

                   {
        LWSTMCPAR_CMD,
        LWSTMCPAR_CHIDX_DONE,
        LWSTMCPAR_CHIDX,
        LWSTMCPAR_PLENH,
        LWSTMCPAR_PLENL,
        LWSTMCPAR_PAY,
        LWSTMCPAR_T64_1,
        LWSTMCPAR_T64_2
};

◆ anonymous enum

anonymous enum

Enumerator
LWSTMC_PENDING_CREATE_CHANNEL
LWSTMC_AWAITING_CREATE_CHANNEL_ACK
LWSTMC_PENDING_CREATE_CHANNEL_NACK
LWSTMC_PENDING_CREATE_CHANNEL_ACK
LWSTMC_OPERATIONAL
LWSTMC_PENDING_CLOSE_CHANNEL
LWSTMC_AWAITING_CLOSE_CHANNEL_ACK
LWSTMC_PENDING_CLOSE_CHANNEL_ACK

Definition at line 467 of file lws-secure-streams-serialization.h.

     {
        /* lws_transport_mux_ch_t created */
        LWSTMC_PENDING_CREATE_CHANNEL,         /* waiting to send create channel */
        LWSTMC_AWAITING_CREATE_CHANNEL_ACK, /* sent create ch, awaiting ack */
        LWSTMC_PENDING_CREATE_CHANNEL_NACK, /* waiting to send create ch ack */
        LWSTMC_PENDING_CREATE_CHANNEL_ACK,  /* waiting to send create ch ack */
        LWSTMC_OPERATIONAL,               /* had ack, we are operational */
        LWSTMC_PENDING_CLOSE_CHANNEL,           /* waiting to send close channel */
        LWSTMC_AWAITING_CLOSE_CHANNEL_ACK,  /* sent close ch, awaiting ack */
        LWSTMC_PENDING_CLOSE_CHANNEL_ACK,   /* waiting to send close ch ack */
        /* lws_transport_mux_ch_t destroyed */
};

◆ anonymous enum

anonymous enum

Enumerator
LWSTM_TRANSPORT_DOWN
LWSTM_OPERATIONAL

Definition at line 497 of file lws-secure-streams-serialization.h.

     { /* states of the transport */
        LWSTM_TRANSPORT_DOWN,
        LWSTM_OPERATIONAL,
};

Function Documentation

◆ lws_transport_mux_create()

lws_transport_mux_t * lws_transport_mux_create	(	struct lws_context *	cx,
		lws_transport_info_t *	info,
		void *	txp_handle )

◆ lws_transport_mux_destroy()

void lws_transport_mux_destroy ( lws_transport_mux_t ** tm )

◆ lws_transport_mux_request_tx()

void lws_transport_mux_request_tx ( lws_transport_mux_t * tm )

◆ lws_transport_mux_rx_parse()

int lws_transport_mux_rx_parse	(	lws_transport_mux_t *	tm,
		const uint8_t *	buf,
		size_t	len,
		const lws_txp_mux_parse_cbs_t *	cbs )

◆ lws_transport_mux_pending()

int lws_transport_mux_pending	(	lws_transport_mux_t *	tm,
		uint8_t *	buf,
		size_t *	len,
		const lws_txp_mux_parse_cbs_t *	cbs )

References lws_transport_mux_client_ops, lws_transport_mux_proxy_ops, lws_txp_inside_proxy, and lws_txp_inside_sspc.

Variable Documentation

◆ lws_transport_mux_client_ops

const lws_transport_client_ops_t lws_transport_mux_client_ops

extern

Referenced by lws_transport_mux_pending().

◆ lws_transport_mux_proxy_ops

const lws_transport_proxy_ops_t lws_transport_mux_proxy_ops

extern

Referenced by lws_transport_mux_pending().

◆ lws_txp_inside_sspc

const lws_transport_client_ops_t lws_txp_inside_sspc

extern

Referenced by lws_transport_mux_pending().

◆ lws_txp_inside_proxy

const lws_transport_proxy_ops_t lws_txp_inside_proxy

extern

Referenced by lws_transport_mux_pending().

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Data Structure Documentation

◆ lws_txp_path_client

◆ lws_txp_path_proxy

◆ lws_transport_client_ops

◆ lws_transport_proxy_ops

◆ lws_transport_mux_ch

◆ lws_transport_info

◆ lws_transport_mux

◆ lws_txp_mux_parse_cbs

Macro Definition Documentation

◆ LWSSSS_VERSION

◆ LWS_MUCH_RANGE

◆ LWS_TRANSPORT_MUXCH_MAGIC

◆ assert_is_tmch

◆ LWSTMINFO_SERVER

◆ LWS_TRANSPORT_MUX_MAGIC

◆ assert_is_tm

◆ lws_transport_path_client_dump

◆ lws_transport_path_proxy_dump

Typedef Documentation

◆ lws_transport_priv_t

◆ lws_txp_path_client_t

◆ lws_txp_path_proxy_t

◆ lws_transport_client_ops_t

◆ lws_transport_proxy_ops_t

◆ lws_mux_ch_idx_t

◆ lws_transport_mux_ch_t

◆ lws_transport_info_t

◆ lws_transport_mux_t

◆ lws_txp_mux_parse_cbs_t

Enumeration Type Documentation

◆ lws_sss_cmds_t

◆ lws_ss_conn_states_t

◆ anonymous enum

◆ lwstmc_parser

◆ anonymous enum

◆ anonymous enum

Function Documentation

◆ lws_transport_mux_create()

◆ lws_transport_mux_destroy()

◆ lws_transport_mux_request_tx()

◆ lws_transport_mux_rx_parse()

◆ lws_transport_mux_pending()

Variable Documentation

◆ lws_transport_mux_client_ops

◆ lws_transport_mux_proxy_ops

◆ lws_txp_inside_sspc

◆ lws_txp_inside_proxy
