lws-dlo.h File Reference

#include <stdint.h>

Include dependency graph for lws-dlo.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	lws_dlo_dim_t
struct	lws_font_glyph
struct	lws_display_id
struct	lws_dlo
struct	lws_circle
struct	lws_dlo_rect
struct	lws_dlo_circle
struct	lws_dlo_hit
struct	lws_font_choice
struct	lws_display_font
struct	lws_dlo_filesystem
struct	lws_dlo_text
struct	lws_dlo_rasterize
struct	lws_dlo_png
struct	lws_dlo_jpeg
struct	lws_dlo_svg
struct	lws_dlo_gif
struct	lws_dlo_image_t
struct	lws_displaylist
struct	lws_dl_rend
struct	lws_display_render_stack
struct	lws_display_render_state
struct	lws_dlo_ss_create_info_t
union	lws_dlo_image_t.u

Macros
#define	LWSDC_RGBA(_r, _g, _b, _a)
#define	LWSDC_R(_c)
#define	LWSDC_G(_c)
#define	LWSDC_B(_c)
#define	LWSDC_ALPHA(_c)
#define	RGB_TO_Y(_r, _g, _b)
#define	PALETTE_RGBY(_r, _g, _b)
#define	LWSDLO_TEXT_FLAG_WRAP   (1 << 0)
#define	LWS_DLO_ASSET_BLOB_DEFAULT_MAX_FOOTPRINT   (64 * 1024 * 1024)
#define	LWS_DLO_ASSET_BLOB_MAX_PAYLOAD   (16 * 1024 * 1024)
#define	LWS_DLO_ASSET_L1_MAX_FOOTPRINT   (8 * 1024 * 1024)
#define	LWS_DLO_ASSET_L1_MAX_ITEMS   256
#define	LWS_DLO_ASSET_CACHE_EXPIRY_S   (24 * 60 * 60)
#define	lws_dlo_image_width(_u)
#define	lws_dlo_image_height(_u)
#define	lws_dlo_image_metadata_scan(_u)

Typedefs
typedef struct lws_font_glyph	lws_font_glyph_t
typedef lws_stateful_ret_t(*	lws_dlo_renderer_t) (struct lws_display_render_state *rs)
typedef lws_font_glyph_t *(*	lws_dlo_image_glyph_t) (struct lws_dlo_text *text, uint32_t unicode, char attach)
typedef void(*	lws_dlo_destroy_t) (struct lws_dlo *dlo)
typedef struct lws_display_id	lws_display_id_t
typedef struct lws_dlo	lws_dlo_t
typedef struct lws_circle	lws_circle_t
typedef struct lws_dlo_rect	lws_dlo_rect_t
typedef struct lws_dlo_circle	lws_dlo_circle_t
typedef struct lws_dlo_hit	lws_dlo_hit_t
typedef struct lws_font_choice	lws_font_choice_t
typedef struct lws_display_font	lws_display_font_t
typedef struct lws_dlo_filesystem	lws_dlo_filesystem_t
typedef struct lws_dlo_text	lws_dlo_text_t
typedef struct lws_dlo_rasterize	lws_dlo_rasterize_t
typedef struct lws_dlo_png	lws_dlo_png_t
typedef struct lws_dlo_jpeg	lws_dlo_jpeg_t
typedef struct lws_dlo_svg	lws_dlo_svg_t
typedef struct lws_dlo_gif	lws_dlo_gif_t
typedef struct lws_displaylist	lws_displaylist_t
typedef struct lws_dl_rend	lws_dl_rend_t
typedef struct lws_display_render_stack	lws_display_render_stack_t
typedef struct lws_display_render_state	lws_display_render_state_t

Enumerations
enum	lws_dlo_cursor_t {   LWS_DLO_CURSOR_DEFAULT , LWS_DLO_CURSOR_POINTER , LWS_DLO_CURSOR_TEXT , LWS_DLO_CURSOR_CROSSHAIR ,   LWS_DLO_CURSOR_MOVE , LWS_DLO_CURSOR_WAIT , LWS_DLO_CURSOR_HELP , LWS_DLO_CURSOR_NOT_ALLOWED ,   LWS_DLO_CURSOR_NONE }
enum	lws_dlo_image_type_t {   LWSDLOSS_TYPE_JPEG , LWSDLOSS_TYPE_PNG , LWSDLOSS_TYPE_SVG , LWSDLOSS_TYPE_GIF ,   LWSDLOSS_TYPE_CSS }

Functions
LWS_VISIBLE LWS_EXTERN void	lws_display_render_free_ids (lws_display_render_state_t *rs)
LWS_VISIBLE LWS_EXTERN lws_display_id_t *	lws_display_render_add_id (lws_display_render_state_t *rs, const char *id, void *priv)
LWS_VISIBLE LWS_EXTERN lws_display_id_t *	lws_display_render_get_id (lws_display_render_state_t *rs, const char *id)
LWS_VISIBLE LWS_EXTERN void	lws_display_render_dump_ids (lws_dll2_owner_t *ids)
LWS_VISIBLE LWS_EXTERN void	lws_dlo_contents (lws_dlo_t *parent, lws_dlo_dim_t *dim)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_adjust_dims (lws_dlo_t *dlo, lws_dlo_dim_t *dim)
LWS_VISIBLE LWS_EXTERN void	lws_display_dl_init (lws_displaylist_t *dl, struct lws_display_state *ds)
LWS_VISIBLE LWS_EXTERN void	lws_display_dl_dump (lws_displaylist_t *dl)
LWS_VISIBLE LWS_EXTERN void	lws_display_list_destroy (struct lws_context *cx, lws_displaylist_t *dl)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_destroy (lws_dlo_t **r)
LWS_VISIBLE LWS_EXTERN int	lws_display_dlo_add (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_dlo_t *dlo)
LWS_VISIBLE LWS_EXTERN int	lws_dlo_ensure_err_diff (lws_dlo_t *dlo)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_list_render_line (lws_display_render_state_t *rs)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_get_ids_boxes (lws_display_render_state_t *rs)
LWS_VISIBLE LWS_EXTERN lws_dlo_rect_t *	lws_display_dlo_rect_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_box_t *box, const lws_fx_t *radii, lws_display_colour_t dc)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_render_rect (struct lws_display_render_state *rs)
LWS_VISIBLE LWS_EXTERN lws_dlo_hit_t *	lws_display_dlo_hit_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, const lws_box_t *box, const char *url, size_t url_len)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_hit_destroy (struct lws_dlo *dlo)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_render_hit (struct lws_display_render_state *rs)
LWS_VISIBLE LWS_EXTERN lws_dlo_hit_t *	lws_display_dl_hit_test (lws_displaylist_t *dl, int x, int y, lws_box_t *abox)
LWS_VISIBLE LWS_EXTERN lws_dlo_cursor_t	lws_display_dl_cursor_at (lws_displaylist_t *dl, int x, int y)
LWS_VISIBLE LWS_EXTERN lws_dlo_text_t *	lws_display_dlo_text_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_box_t *box, const lws_display_font_t *font)
LWS_VISIBLE LWS_EXTERN int	lws_display_dlo_text_update (lws_dlo_text_t *text, lws_display_colour_t dc, lws_fx_t indent, const char *utf8, size_t text_len)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_text_measure (lws_dlo_text_t *text, const char *utf8, size_t text_len, lws_fx_t *total, lws_fx_t *longest_word)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_text_destroy (struct lws_dlo *dlo)
LWS_VISIBLE LWS_EXTERN lws_dlo_png_t *	lws_display_dlo_png_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_box_t *box, const char *name, size_t len)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_render_png (struct lws_display_render_state *rs)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_dlo_png_metadata_scan (lws_dlo_png_t *dp)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_png_destroy (struct lws_dlo *dlo)
LWS_VISIBLE LWS_EXTERN lws_dlo_jpeg_t *	lws_display_dlo_jpeg_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_box_t *box, const char *name, size_t len)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_render_jpeg (struct lws_display_render_state *rs)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_dlo_jpeg_metadata_scan (lws_dlo_jpeg_t *dj)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_jpeg_destroy (struct lws_dlo *dlo)
LWS_VISIBLE LWS_EXTERN lws_dlo_svg_t *	lws_display_dlo_svg_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_box_t *box, const char *name, size_t len)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_render_svg (struct lws_display_render_state *rs)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_dlo_svg_metadata_scan (lws_dlo_svg_t *ds)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_svg_destroy (struct lws_dlo *dlo)
LWS_VISIBLE LWS_EXTERN lws_dlo_gif_t *	lws_display_dlo_gif_new (lws_displaylist_t *dl, lws_dlo_t *dlo_parent, lws_box_t *box, const char *name, size_t len)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_render_gif (struct lws_display_render_state *rs)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lws_display_dlo_gif_metadata_scan (lws_dlo_gif_t *dg)
LWS_VISIBLE LWS_EXTERN void	lws_display_dlo_gif_destroy (struct lws_dlo *dlo)
LWS_VISIBLE LWS_EXTERN int	lws_display_dlo_gif_rx (lws_dlo_gif_t *dlo_gif, const uint8_t *buf, size_t len)
LWS_VISIBLE LWS_EXTERN int	lws_dlo_ss_create (lws_dlo_ss_create_info_t *i, lws_dlo_t **pdlo)
LWS_VISIBLE LWS_EXTERN int	lws_dlo_ss_find (struct lws_context *cx, const char *url, lws_dlo_image_t *u)
LWS_VISIBLE LWS_EXTERN int	lws_dlo_ss_assets_active (struct lws_context *cx)
LWS_VISIBLE LWS_EXTERN int	lws_dlo_ss_stop_any_active (struct lws_context *cx)
LWS_VISIBLE LWS_EXTERN void	lws_dlo_ss_detach_lhp (struct lws_context *cx, struct lhp_ctx *lhp)
LWS_VISIBLE LWS_EXTERN void	lws_dlo_ss_renew_images (struct lws_context *cx)
LWS_VISIBLE LWS_EXTERN int	lws_dlo_ss_renew_image (struct lws_context *cx, lws_dlo_t *dlo)
LWS_VISIBLE LWS_EXTERN struct lws_cache_ttl_lru *	lws_dlo_asset_cache (struct lws_context *cx)
LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t	lhp_displaylist_layout (struct lhp_ctx *ctx, char reason)
LWS_VISIBLE LWS_EXTERN int	lws_font_register (struct lws_context *cx, const uint8_t *data, size_t data_len)
LWS_VISIBLE LWS_EXTERN int	lws_font_register_file (struct lws_context *cx, const char *path)
LWS_VISIBLE LWS_EXTERN int	lws_fonts_register_dir (struct lws_context *cx, const char *dirpath)
LWS_VISIBLE LWS_EXTERN const lws_display_font_t *	lws_font_choose (struct lws_context *cx, const lws_font_choice_t *hints)
LWS_VISIBLE LWS_EXTERN void	lws_fonts_destroy (struct lws_context *cx)
LWS_VISIBLE LWS_EXTERN lws_dlo_filesystem_t *	lws_dlo_file_register (struct lws_context *cx, const lws_dlo_filesystem_t *f)
LWS_VISIBLE LWS_EXTERN void	lws_dlo_file_unregister (lws_dlo_filesystem_t **f)
LWS_VISIBLE LWS_EXTERN void	lws_dlo_file_unregister_by_name (struct lws_context *cx, const char *name)
LWS_VISIBLE LWS_EXTERN const lws_dlo_filesystem_t *	lws_dlo_file_choose (struct lws_context *cx, const char *name)
LWS_VISIBLE LWS_EXTERN void	lws_dlo_file_destroy (struct lws_context *cx)

Variables
LWS_VISIBLE LWS_EXTERN_FOR_DATA const struct lws_plat_file_ops	lws_dlo_fops

---

Data Structure Documentation

lws_dlo_dim_t

struct lws_dlo_dim_t

Definition at line 55 of file lws-dlo.h.

Collaboration diagram for lws_dlo_dim_t:

Data Fields
lws_fx_t	w
lws_fx_t	h

lws_font_glyph

struct lws_font_glyph

Definition at line 66 of file lws-dlo.h.

Collaboration diagram for lws_font_glyph:

Data Fields
lws_dll2_t	list
lws_fx_t	xorg
lws_fx_t	xpx
lws_fx_t	height
lws_fx_t	cwidth
int8_t	x
void *	pin

lws_display_id

struct lws_display_id

Definition at line 85 of file lws-dlo.h.

Collaboration diagram for lws_display_id:

Data Fields
lws_dll2_t	list
char	id[16]
lws_box_t	box
void *	priv_user
void *	priv_driver
char	exists
char	iframe

lws_dlo

struct lws_dlo

Definition at line 107 of file lws-dlo.h.

Collaboration diagram for lws_dlo:

Data Fields
lws_dll2_t	list
lws_dll2_t	col_list
lws_dll2_t	row_list
lws_dll2_owner_t	children
lws_dll2_owner_t	table_cols
lws_dll2_owner_t	table_rows
struct lws_dlo *	abut_x
struct lws_dlo *	abut_y
lws_dlo_destroy_t	_destroy
lws_dlo_renderer_t	render
lws_fx_t	margin[4]
lws_fx_t	padding[4]
lws_display_id_t *	id
lws_box_t	box
lws_display_colour_t	dc
uint8_t	budget
int16_t	base_up
uint8_t	flag_toplevel:1
uint8_t	flag_block:1
uint8_t	flag_row:1
uint8_t	flag_cell:1
uint8_t	flag_abs:1
uint8_t	flag_float:1
uint8_t	flag_zraise:1
uint8_t	flag_online:1
uint8_t	flag_bg_homed:1
uint8_t	flag_inline_bg:1
uint8_t	flag_flex_item:1
uint8_t	flag_fixed_h:1
uint8_t	flag_abs_stretch:1
uint8_t	flex_grow
uint8_t	align_self

lws_circle

struct lws_circle

Definition at line 172 of file lws-dlo.h.

Collaboration diagram for lws_circle:

Data Fields
lws_fx_t	r
lws_fx_t	orx
lws_fx_t	ory
lws_fx_t	rsq
lws_fx_t	ys

lws_dlo_rect

struct lws_dlo_rect

Definition at line 182 of file lws-dlo.h.

Collaboration diagram for lws_dlo_rect:

Data Fields
lws_dlo_t	dlo
lws_circle_t	c[4]
lws_fx_t	b[4]
lws_display_colour_t	dcb
lws_fx_t	btm
lws_fx_t	right
lws_box_t	db
uint8_t	init
uint8_t	alt
uint8_t	tri

lws_dlo_circle

struct lws_dlo_circle

Definition at line 202 of file lws-dlo.h.

Collaboration diagram for lws_dlo_circle:

Data Fields
lws_dlo_t	dlo

lws_dlo_hit

struct lws_dlo_hit

Definition at line 232 of file lws-dlo.h.

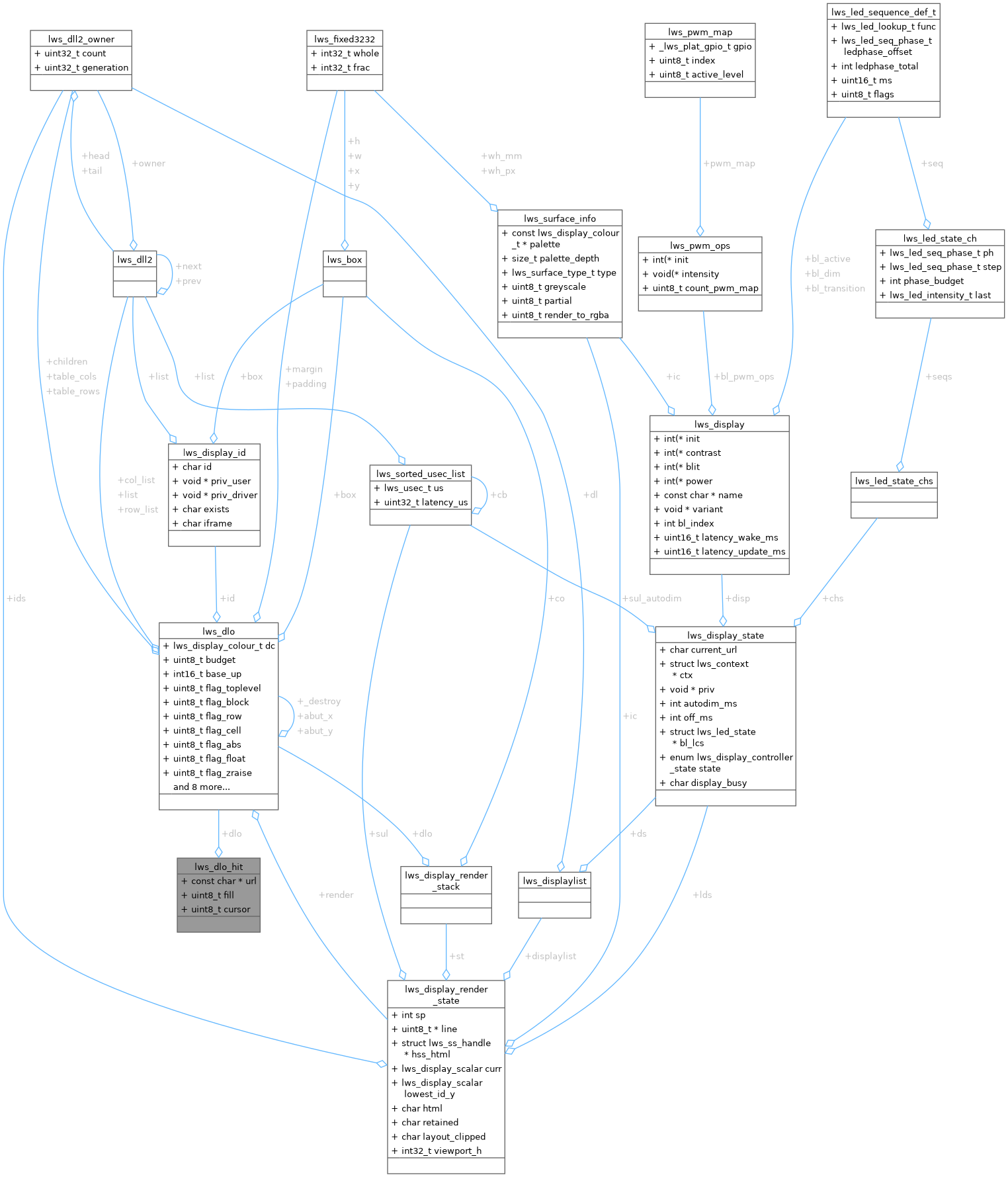

Collaboration diagram for lws_dlo_hit:

Data Fields
lws_dlo_t	dlo
const char *	url
uint8_t	fill
uint8_t	cursor

lws_font_choice

struct lws_font_choice

Definition at line 242 of file lws-dlo.h.

Collaboration diagram for lws_font_choice:

Data Fields
const char *	family_name
const char *	generic_name
uint16_t	weight
uint16_t	style
uint16_t	fixed_height

lws_display_font

struct lws_display_font

Definition at line 250 of file lws-dlo.h.

Collaboration diagram for lws_display_font:

Data Fields
lws_dll2_t	list
lws_font_choice_t	choice
const uint8_t *	data
uint8_t *	priv
size_t	data_len
lws_dlo_renderer_t	renderer
lws_dlo_image_glyph_t	image_glyph
lws_fx_t	em
lws_fx_t	ex

lws_dlo_filesystem

struct lws_dlo_filesystem

Definition at line 265 of file lws-dlo.h.

Collaboration diagram for lws_dlo_filesystem:

Data Fields
lws_dll2_t	list
const char *	name
const void *	data
size_t	len

lws_dlo_text

struct lws_dlo_text

Definition at line 275 of file lws-dlo.h.

Collaboration diagram for lws_dlo_text:

Data Fields
lws_dlo_t	dlo
const lws_display_font_t *	font
lws_dll2_owner_t	glyphs
lws_box_t	bounding_box
const struct lws_surface_info *	ic
struct lwsac *	ac_glyphs
uint8_t *	line
uint16_t	curr
uint16_t	glyph_row
char *	text
uint8_t *	kern
size_t	text_len
lws_display_list_coord_t	clkernpx
lws_display_list_coord_t	cwidth
lws_fx_t	indent
uint32_t	flags
int16_t	font_y_baseline
int16_t	font_height
int16_t	font_line_height
int16_t	group_height
int16_t	group_y_baseline
lws_fx_t	_cwidth

lws_dlo_rasterize

struct lws_dlo_rasterize

Definition at line 310 of file lws-dlo.h.

Collaboration diagram for lws_dlo_rasterize:

Data Fields
lws_dll2_owner_t	owner
lws_sorted_usec_list_t	sul
int	lines

lws_dlo_png

struct lws_dlo_png

Definition at line 316 of file lws-dlo.h.

Collaboration diagram for lws_dlo_png:

Data Fields
lws_dlo_t	dlo
lws_flow_t	flow
char	name[25]
lws_upng_t *	png
uint32_t	emitted
uint8_t *	row
uint32_t	row_len
lws_reclaimable_t	rc
uint8_t	evicted
uint8_t	yields

lws_dlo_jpeg

struct lws_dlo_jpeg

Definition at line 332 of file lws-dlo.h.

Collaboration diagram for lws_dlo_jpeg:

Data Fields
lws_dlo_t	dlo
lws_flow_t	flow
char	name[25]
lws_jpeg_t *	j
uint32_t	emitted
uint8_t *	row
uint32_t	row_len
lws_reclaimable_t	rc
uint8_t	evicted

lws_dlo_svg

struct lws_dlo_svg

Definition at line 347 of file lws-dlo.h.

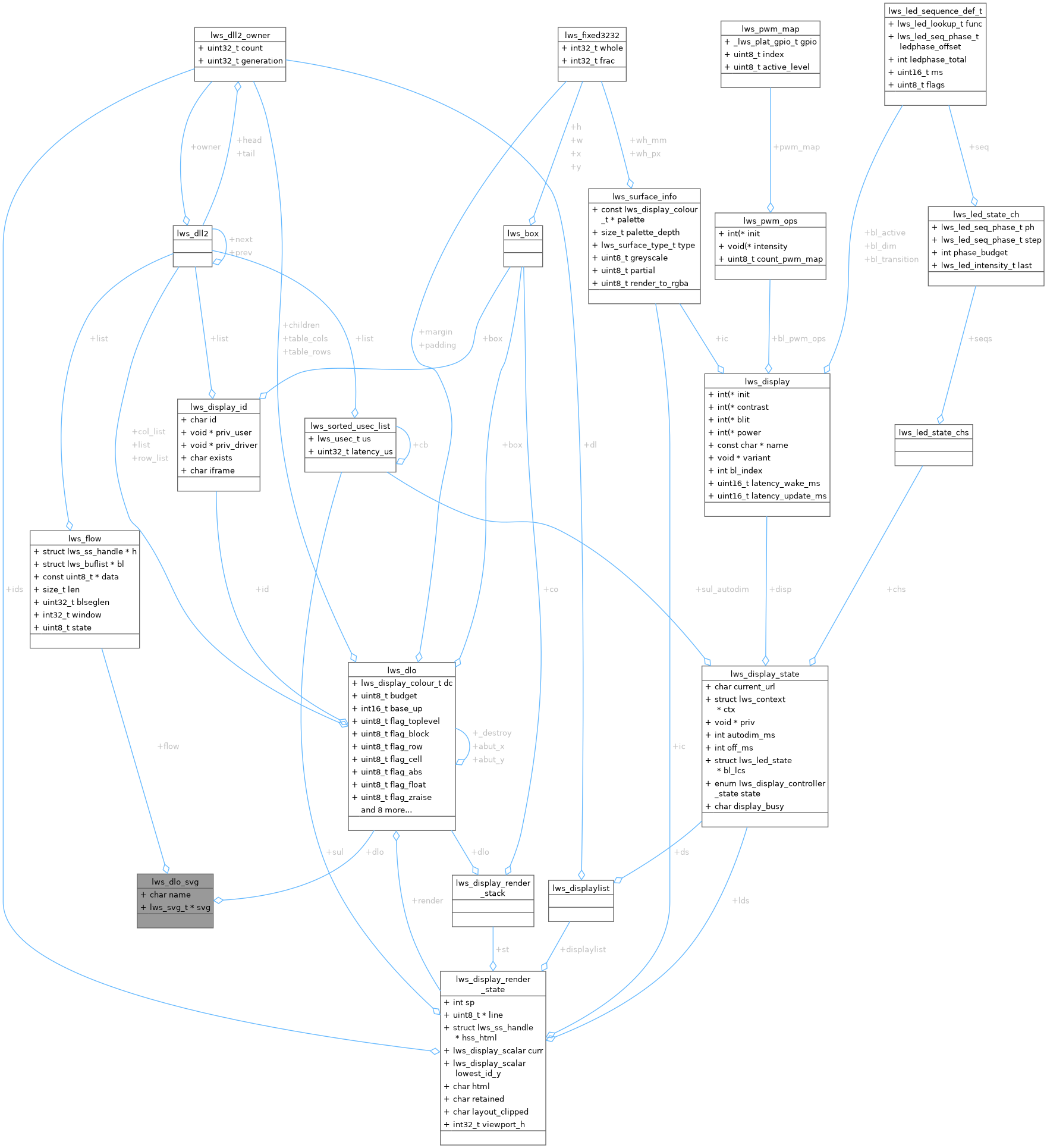

Collaboration diagram for lws_dlo_svg:

Data Fields
lws_dlo_t	dlo
lws_flow_t	flow
char	name[25]
lws_svg_t *	svg

lws_dlo_gif

struct lws_dlo_gif

Definition at line 362 of file lws-dlo.h.

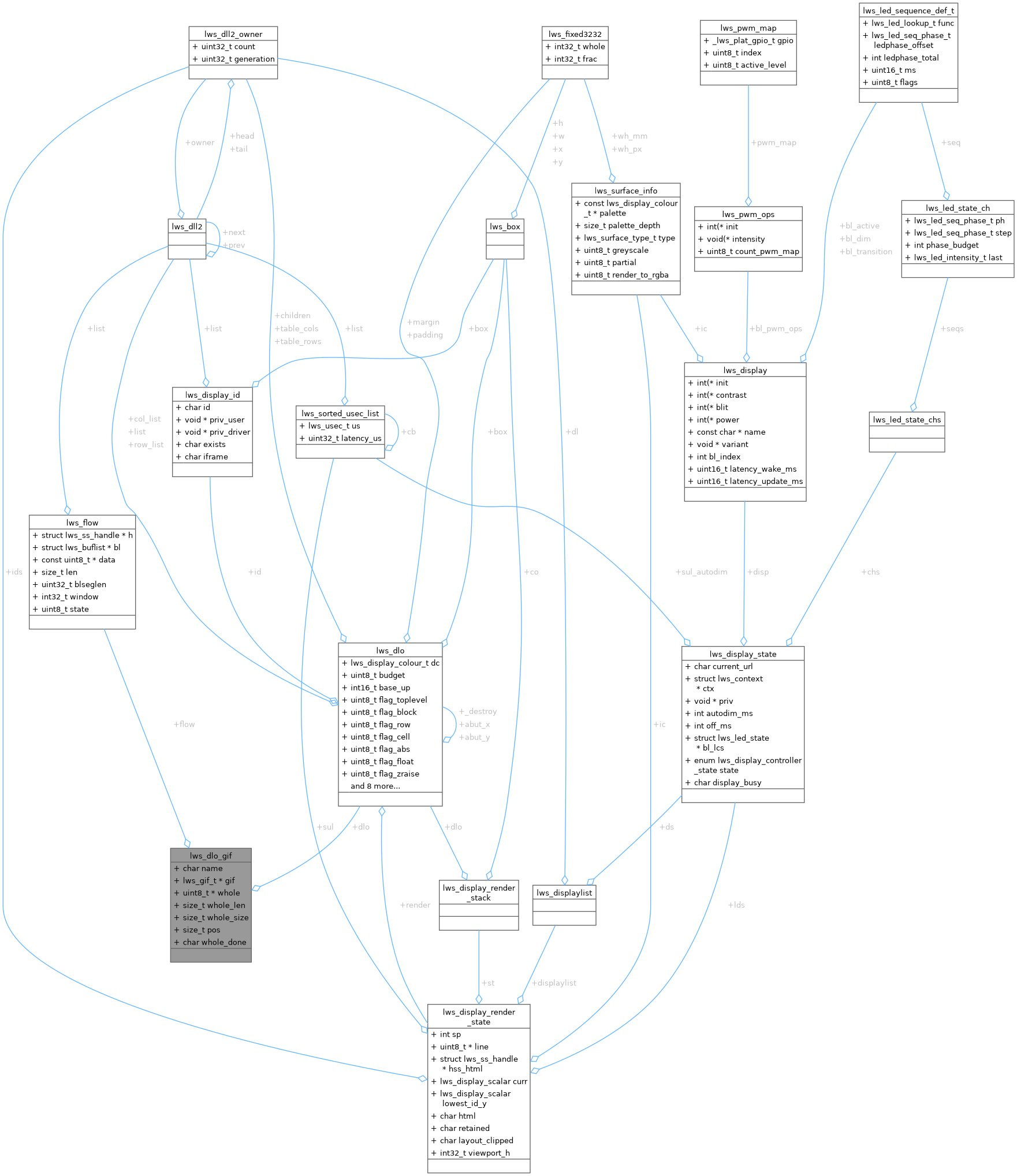

Collaboration diagram for lws_dlo_gif:

Data Fields
lws_dlo_t	dlo
lws_flow_t	flow
char	name[25]
lws_gif_t *	gif
uint8_t *	whole
size_t	whole_len
size_t	whole_size
size_t	pos
char	whole_done

lws_displaylist

struct lws_displaylist

Definition at line 393 of file lws-dlo.h.

Collaboration diagram for lws_displaylist:

Data Fields
lws_dll2_owner_t	dl
struct lws_display_state *	ds

lws_dl_rend

struct lws_dl_rend

Definition at line 398 of file lws-dlo.h.

Collaboration diagram for lws_dl_rend:

Data Fields
lws_displaylist_t *	dl
int	w
int	h
char	clipped

lws_display_render_stack

struct lws_display_render_stack

Definition at line 406 of file lws-dlo.h.

Collaboration diagram for lws_display_render_stack:

Data Fields
lws_dlo_t *	dlo
lws_box_t	co

lws_display_render_state

struct lws_display_render_state

Definition at line 411 of file lws-dlo.h.

Collaboration diagram for lws_display_render_state:

Data Fields
lws_sorted_usec_list_t	sul
struct lws_display_state *	lds
lws_dll2_owner_t	ids
const struct lws_surface_info *	ic
lws_display_render_stack_t	st[64]
int	sp
uint8_t *	line
lws_displaylist_t	displaylist
struct lws_ss_handle *	hss_html
lws_display_scalar	curr
lws_display_scalar	lowest_id_y
char	html
char	retained
char	layout_clipped
int32_t	viewport_h

lws_dlo_ss_create_info_t

struct lws_dlo_ss_create_info_t

Definition at line 706 of file lws-dlo.h.

Collaboration diagram for lws_dlo_ss_create_info_t:

Data Fields
struct lws_context *	cx
lws_displaylist_t *	dl
lws_dlo_t *	dlo_parent
lws_box_t *	box
sul_cb_t	on_rx
lws_sorted_usec_list_t *	on_rx_sul
const char *	url
struct lhp_ctx *	lhp
lws_dlo_image_t *	u
int32_t	window
uint8_t	type

lws_dlo_image_t.u

union lws_dlo_image_t.u

Definition at line 383 of file lws-dlo.h.

Collaboration diagram for lws_dlo_image_t.u:

Data Fields
lws_dlo_jpeg_t *	dlo_jpeg
lws_dlo_png_t *	dlo_png
lws_dlo_svg_t *	dlo_svg
lws_dlo_gif_t *	dlo_gif

Macro Definition Documentation

LWSDC_RGBA

#define LWSDC_RGBA	(		_r,
			_g,
			_b,
			_a )

Value:

(((uint32_t)(_r) & 0xff) | \
(((uint32_t)(_g) & 0xff) << 8) | \
(((uint32_t)(_b) & 0xff) << 16) | \
(((uint32_t)(_a) & 0xff) << 24))

Definition at line 41 of file lws-dlo.h.

#define LWSDC_RGBA(_r, _g, _b, _a) (((uint32_t)(_r) & 0xff) | \
                                   (((uint32_t)(_g) & 0xff) << 8) | \
                                   (((uint32_t)(_b) & 0xff) << 16) | \
                                   (((uint32_t)(_a) & 0xff) << 24))

LWSDC_R

#define LWSDC_R

(

_c

)

Value:

((_c) & 0xff)

Definition at line 46 of file lws-dlo.h.

LWSDC_G

#define LWSDC_G

(

_c

)

Value:

((_c >> 8) & 0xff)

Definition at line 47 of file lws-dlo.h.

LWSDC_B

#define LWSDC_B

(

_c

)

Value:

((_c >> 16) & 0xff)

Definition at line 48 of file lws-dlo.h.

LWSDC_ALPHA

#define LWSDC_ALPHA

(

_c

)

Value:

((_c >> 24) & 0xff)

Definition at line 49 of file lws-dlo.h.

RGB_TO_Y

#define RGB_TO_Y	(		_r,
			_g,
			_b )

Value:

((((_r) * 299) + ((_g) * 587) + ((_b) * 114)) / 1000)

Definition at line 51 of file lws-dlo.h.

PALETTE_RGBY

#define PALETTE_RGBY	(		_r,
			_g,
			_b )

Value:

LWSDC_RGBA(_r, _g, _b, (RGB_TO_Y(_r, _g, _b)))

Definition at line 53 of file lws-dlo.h.

LWSDLO_TEXT_FLAG_WRAP

#define LWSDLO_TEXT_FLAG_WRAP   (1 << 0)

Definition at line 273 of file lws-dlo.h.

LWS_DLO_ASSET_BLOB_DEFAULT_MAX_FOOTPRINT

#define LWS_DLO_ASSET_BLOB_DEFAULT_MAX_FOOTPRINT   (64 * 1024 * 1024)

default max bytes on disk for the asset cache, when the context creation info gives 0 for dlo_asset_cache_max_footprint

Definition at line 802 of file lws-dlo.h.

LWS_DLO_ASSET_BLOB_MAX_PAYLOAD

#define LWS_DLO_ASSET_BLOB_MAX_PAYLOAD   (16 * 1024 * 1024)

individual assets larger than this are not cached

Definition at line 808 of file lws-dlo.h.

LWS_DLO_ASSET_L1_MAX_FOOTPRINT

#define LWS_DLO_ASSET_L1_MAX_FOOTPRINT   (8 * 1024 * 1024)

max heap bytes for the in-memory level of the asset cache

Definition at line 813 of file lws-dlo.h.

LWS_DLO_ASSET_L1_MAX_ITEMS

#define LWS_DLO_ASSET_L1_MAX_ITEMS   256

max items in the in-memory level of the asset cache

Definition at line 818 of file lws-dlo.h.

LWS_DLO_ASSET_CACHE_EXPIRY_S

#define LWS_DLO_ASSET_CACHE_EXPIRY_S   (24 * 60 * 60)

how long fetched assets stay valid in the cache, in seconds. Set to 0 to keep them until the cache needs the space (LRU eviction)

Definition at line 823 of file lws-dlo.h.

lws_dlo_image_width

#define lws_dlo_image_width

(

_u

)

Value:

((_u)->failed ? -1 : \
((_u)->type == LWSDLOSS_TYPE_JPEG ? \
                (int)lws_jpeg_get_width((_u)->u.dlo_jpeg->j) : \
                (int)lws_upng_get_width((_u)->u.dlo_png->png)))

Definition at line 924 of file lws-dlo.h.

#define lws_dlo_image_width(_u) ((_u)->failed ? -1 : \
        ((_u)->type == LWSDLOSS_TYPE_JPEG ? \
                        (int)lws_jpeg_get_width((_u)->u.dlo_jpeg->j) : \
                        (int)lws_upng_get_width((_u)->u.dlo_png->png)))

lws_dlo_image_height

#define lws_dlo_image_height

(

_u

)

Value:

((_u)->failed ? -1 : \
((_u)->type == LWSDLOSS_TYPE_JPEG ? \
                (int)lws_jpeg_get_height((_u)->u.dlo_jpeg->j) : \
                (int)lws_upng_get_height((_u)->u.dlo_png->png)))

Definition at line 928 of file lws-dlo.h.

#define lws_dlo_image_height(_u) ((_u)->failed ? -1 : \
        ((_u)->type == LWSDLOSS_TYPE_JPEG ? \
                        (int)lws_jpeg_get_height((_u)->u.dlo_jpeg->j) : \
                        (int)lws_upng_get_height((_u)->u.dlo_png->png)))

lws_dlo_image_metadata_scan

#define lws_dlo_image_metadata_scan

(

_u

)

Value:

((_u)->failed ? LWS_SRET_FATAL : \
((_u)->type == LWSDLOSS_TYPE_JPEG ? \
        lws_display_dlo_jpeg_metadata_scan((_u)->u.dlo_jpeg) : \
        lws_display_dlo_png_metadata_scan((_u)->u.dlo_png)))

Definition at line 933 of file lws-dlo.h.

#define lws_dlo_image_metadata_scan(_u) ((_u)->failed ? LWS_SRET_FATAL : \
        ((_u)->type == LWSDLOSS_TYPE_JPEG ? \
                lws_display_dlo_jpeg_metadata_scan((_u)->u.dlo_jpeg) : \
                lws_display_dlo_png_metadata_scan((_u)->u.dlo_png)))

Typedef Documentation

lws_font_glyph_t

typedef struct lws_font_glyph lws_font_glyph_t

lws_dlo_renderer_t

typedef lws_stateful_ret_t(* lws_dlo_renderer_t) (struct lws_display_render_state *rs)

Definition at line 79 of file lws-dlo.h.

lws_dlo_image_glyph_t

typedef lws_font_glyph_t *(* lws_dlo_image_glyph_t) (struct lws_dlo_text *text, uint32_t unicode, char attach)

Definition at line 80 of file lws-dlo.h.

lws_dlo_destroy_t

typedef void(* lws_dlo_destroy_t) (struct lws_dlo *dlo)

Definition at line 83 of file lws-dlo.h.

lws_display_id_t

typedef struct lws_display_id lws_display_id_t

lws_dlo_t

typedef struct lws_dlo lws_dlo_t

lws_circle_t

typedef struct lws_circle lws_circle_t

lws_dlo_rect_t

typedef struct lws_dlo_rect lws_dlo_rect_t

lws_dlo_circle_t

typedef struct lws_dlo_circle lws_dlo_circle_t

lws_dlo_hit_t

typedef struct lws_dlo_hit lws_dlo_hit_t

lws_font_choice_t

typedef struct lws_font_choice lws_font_choice_t

lws_display_font_t

typedef struct lws_display_font lws_display_font_t

lws_dlo_filesystem_t

typedef struct lws_dlo_filesystem lws_dlo_filesystem_t

lws_dlo_text_t

typedef struct lws_dlo_text lws_dlo_text_t

lws_dlo_rasterize_t

typedef struct lws_dlo_rasterize lws_dlo_rasterize_t

lws_dlo_png_t

typedef struct lws_dlo_png lws_dlo_png_t

lws_dlo_jpeg_t

typedef struct lws_dlo_jpeg lws_dlo_jpeg_t

lws_dlo_svg_t

typedef struct lws_dlo_svg lws_dlo_svg_t

lws_dlo_gif_t

typedef struct lws_dlo_gif lws_dlo_gif_t

lws_displaylist_t

typedef struct lws_displaylist lws_displaylist_t

lws_dl_rend_t

typedef struct lws_dl_rend lws_dl_rend_t

lws_display_render_stack_t

typedef struct lws_display_render_stack lws_display_render_stack_t

lws_display_render_state_t

typedef struct lws_display_render_state lws_display_render_state_t

Enumeration Type Documentation

lws_dlo_cursor_t

enum lws_dlo_cursor_t

Enumerator
LWS_DLO_CURSOR_DEFAULT
LWS_DLO_CURSOR_POINTER
LWS_DLO_CURSOR_TEXT
LWS_DLO_CURSOR_CROSSHAIR
LWS_DLO_CURSOR_MOVE
LWS_DLO_CURSOR_WAIT
LWS_DLO_CURSOR_HELP
LWS_DLO_CURSOR_NOT_ALLOWED
LWS_DLO_CURSOR_NONE

Definition at line 220 of file lws-dlo.h.

             {
        LWS_DLO_CURSOR_DEFAULT,         /* the platform arrow */
        LWS_DLO_CURSOR_POINTER,         /* pointing hand: links, buttons */
        LWS_DLO_CURSOR_TEXT,            /* I-beam: editable / selectable text */
        LWS_DLO_CURSOR_CROSSHAIR,
        LWS_DLO_CURSOR_MOVE,
        LWS_DLO_CURSOR_WAIT,
        LWS_DLO_CURSOR_HELP,
        LWS_DLO_CURSOR_NOT_ALLOWED,
        LWS_DLO_CURSOR_NONE,            /* hidden */
} lws_dlo_cursor_t;

lws_dlo_image_type_t

enum lws_dlo_image_type_t

Enumerator
LWSDLOSS_TYPE_JPEG
LWSDLOSS_TYPE_PNG
LWSDLOSS_TYPE_SVG
LWSDLOSS_TYPE_GIF
LWSDLOSS_TYPE_CSS

Definition at line 374 of file lws-dlo.h.

             {
        LWSDLOSS_TYPE_JPEG,
        LWSDLOSS_TYPE_PNG,
        LWSDLOSS_TYPE_SVG,
        LWSDLOSS_TYPE_GIF,
        LWSDLOSS_TYPE_CSS,
} lws_dlo_image_type_t;

Function Documentation

lws_display_render_free_ids()

LWS_VISIBLE LWS_EXTERN void lws_display_render_free_ids

(

lws_display_render_state_t *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_add_id()

LWS_VISIBLE LWS_EXTERN lws_display_id_t * lws_display_render_add_id	(	lws_display_render_state_t *	rs,
		const char *	id,
		void *	priv )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_get_id()

LWS_VISIBLE LWS_EXTERN lws_display_id_t * lws_display_render_get_id	(	lws_display_render_state_t *	rs,
		const char *	id )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_dump_ids()

LWS_VISIBLE LWS_EXTERN void lws_display_render_dump_ids

(

lws_dll2_owner_t *

ids

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_contents()

LWS_VISIBLE LWS_EXTERN void lws_dlo_contents	(	lws_dlo_t *	parent,
		lws_dlo_dim_t *	dim )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_adjust_dims()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_adjust_dims	(	lws_dlo_t *	dlo,
		lws_dlo_dim_t *	dim )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dl_init()

LWS_VISIBLE LWS_EXTERN void lws_display_dl_init	(	lws_displaylist_t *	dl,
		struct lws_display_state *	ds )

lws_display_dl_init() - init display list object

Parameters

dl	Pointer to the display list
ds	Lws display state to bind the list to

Initializes the display list dl and binds it to the display state ds.

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dl_dump()

LWS_VISIBLE LWS_EXTERN void lws_display_dl_dump

(

lws_displaylist_t *

dl

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_list_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_list_destroy	(	struct lws_context *	cx,
		lws_displaylist_t *	dl )

lws_display_list_destroy() - destroys display list and objects on it

Parameters

cx	lws_context
dl	Pointer to the display list

Destroys every DLO on the list.

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_destroy

(

lws_dlo_t **

r

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_add()

LWS_VISIBLE LWS_EXTERN int lws_display_dlo_add	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_dlo_t *	dlo )

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ensure_err_diff()

LWS_VISIBLE LWS_EXTERN int lws_dlo_ensure_err_diff

(

lws_dlo_t *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_list_render_line()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_list_render_line

(

lws_display_render_state_t *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_get_ids_boxes()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_get_ids_boxes

(

lws_display_render_state_t *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_rect_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_rect_t * lws_display_dlo_rect_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_box_t *	box,
		const lws_fx_t *	radii,
		lws_display_colour_t	dc )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_rect()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_render_rect

(

struct lws_display_render_state *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_hit_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_hit_t * lws_display_dlo_hit_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		const lws_box_t *	box,
		const char *	url,
		size_t	url_len )

lws_display_dlo_hit_new() - add a non-printing hit region to the display list

Parameters

dl	the display list
dlo_parent	the dlo whose child it becomes, or NULL for the list head
box	its box relative to the parent, or NULL for all zeros
url	the url (or other metadata string) the region carries, or NULL
url_len	the length of url

The url is copied into the region's own allocation. Set .fill on the result for a region that always has its parent's size, and .cursor to the lws_dlo_cursor_t the pointer should take over it.

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_hit_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_hit_destroy

(

struct lws_dlo *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_hit()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_render_hit

(

struct lws_display_render_state *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dl_hit_test()

LWS_VISIBLE LWS_EXTERN lws_dlo_hit_t * lws_display_dl_hit_test	(	lws_displaylist_t *	dl,
		int	x,
		int	y,
		lws_box_t *	abox )

lws_display_dl_hit_test() - find the hit region at a point

Parameters

dl	the display list
x	x in the display list's coordinates
y	y in the display list's coordinates
abox	NULL, or filled with the region's absolute box if one is hit

Returns the topmost hit region containing the point, or NULL if none. For a laid-out html document the coordinates are those of the document, so a viewport offset must be added to a window position first.

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dl_cursor_at()

LWS_VISIBLE LWS_EXTERN lws_dlo_cursor_t lws_display_dl_cursor_at	(	lws_displaylist_t *	dl,
		int	x,
		int	y )

lws_display_dl_cursor_at() - the pointer shape for a point

Parameters

dl	the display list
x	x in the display list's coordinates
y	y in the display list's coordinates

Returns the cursor the topmost hit region containing the point asks for, or LWS_DLO_CURSOR_DEFAULT if there is none. A windowing app calls this on pointer motion and sets the platform cursor to match.

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_text_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_text_t * lws_display_dlo_text_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_box_t *	box,
		const lws_display_font_t *	font )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_text_update()

LWS_VISIBLE LWS_EXTERN int lws_display_dlo_text_update	(	lws_dlo_text_t *	text,
		lws_display_colour_t	dc,
		lws_fx_t	indent,
		const char *	utf8,
		size_t	text_len )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_text_measure()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_text_measure	(	lws_dlo_text_t *	text,
		const char *	utf8,
		size_t	text_len,
		lws_fx_t *	total,
		lws_fx_t *	longest_word )

lws_display_dlo_text_measure() - width of a string in a text dlo's font

text: a text dlo, used for its font utf8: the string text_len: its length in bytes total: set to the width if laid out on one line longest_word: set to the width of the widest space-delimited word

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_text_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_text_destroy

(

struct lws_dlo *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_png_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_png_t * lws_display_dlo_png_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_box_t *	box,
		const char *	name,
		size_t	len )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_png()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_render_png

(

struct lws_display_render_state *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_png_metadata_scan()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_dlo_png_metadata_scan

(

lws_dlo_png_t *

dp

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_png_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_png_destroy

(

struct lws_dlo *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_jpeg_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_jpeg_t * lws_display_dlo_jpeg_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_box_t *	box,
		const char *	name,
		size_t	len )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_jpeg()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_render_jpeg

(

struct lws_display_render_state *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_jpeg_metadata_scan()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_dlo_jpeg_metadata_scan

(

lws_dlo_jpeg_t *

dj

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_jpeg_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_jpeg_destroy

(

struct lws_dlo *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_svg_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_svg_t * lws_display_dlo_svg_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_box_t *	box,
		const char *	name,
		size_t	len )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_svg()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_render_svg

(

struct lws_display_render_state *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_svg_metadata_scan()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_dlo_svg_metadata_scan

(

lws_dlo_svg_t *

ds

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_svg_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_svg_destroy

(

struct lws_dlo *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_gif_new()

LWS_VISIBLE LWS_EXTERN lws_dlo_gif_t * lws_display_dlo_gif_new	(	lws_displaylist_t *	dl,
		lws_dlo_t *	dlo_parent,
		lws_box_t *	box,
		const char *	name,
		size_t	len )

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_render_gif()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_render_gif

(

struct lws_display_render_state *

rs

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_gif_metadata_scan()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lws_display_dlo_gif_metadata_scan

(

lws_dlo_gif_t *

dg

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_gif_destroy()

LWS_VISIBLE LWS_EXTERN void lws_display_dlo_gif_destroy

(

struct lws_dlo *

dlo

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_display_dlo_gif_rx()

LWS_VISIBLE LWS_EXTERN int lws_display_dlo_gif_rx	(	lws_dlo_gif_t *	dlo_gif,
		const uint8_t *	buf,
		size_t	len )

lws_dlo_ss_create()

LWS_VISIBLE LWS_EXTERN int lws_dlo_ss_create	(	lws_dlo_ss_create_info_t *	i,
		lws_dlo_t **	pdlo )

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ss_find()

LWS_VISIBLE LWS_EXTERN int lws_dlo_ss_find	(	struct lws_context *	cx,
		const char *	url,
		lws_dlo_image_t *	u )

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ss_assets_active()

LWS_VISIBLE LWS_EXTERN int lws_dlo_ss_assets_active

(

struct lws_context *

cx

)

lws_dlo_ss_assets_active() - are any document assets fetching or queued?

Parameters

cx	the lws_context

Returns nonzero if any image or stylesheet asset is being fetched, or is queued waiting for an in-flight slot. A document whose own stream has ended should defer considering itself complete until this returns 0.

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ss_stop_any_active()

LWS_VISIBLE LWS_EXTERN int lws_dlo_ss_stop_any_active

(

struct lws_context *

cx

)

lws_dlo_ss_stop_any_active() - destroy all tracked document assets

Parameters

cx	the lws_context

Destroys every document asset that is fetching or queued for a fetch slot, if any. Used to tear a document down; see lws_lhp_ss_cancel().

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ss_detach_lhp()

LWS_VISIBLE LWS_EXTERN void lws_dlo_ss_detach_lhp	(	struct lws_context *	cx,
		struct lhp_ctx *	lhp )

lws_dlo_ss_detach_lhp() - forget a document parser in its asset streams

Parameters

cx	the lws context
lhp	the html parser context that is about to be destroyed

Asset streams (images, stylesheets) created for a document keep pointers to its parser context and to the sul and callback of the stream that owns it, to resume the parse when they have something. If that stream is destroyed while assets are still in flight (a failure of the html stream, a context destroy), call this from its DESTROYING so the assets stop referring to memory that is going away; they then finish or fail on their own and are destroyed with their dlos or by lws_dlo_ss_stop_any_active().

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ss_renew_images()

LWS_VISIBLE LWS_EXTERN void lws_dlo_ss_renew_images

(

struct lws_context *

cx

)

lws_dlo_ss_renew_images() - reset tracked images for a re-scan

Parameters

cx	the lws_context

Image decode state only moves forwards, but a retained display list can be re-scanned at a different vertical offset (eg, an interactive viewport scrolling). This re-stashes each tracked image's payload from the document asset cache and gives it a fresh decoder, so the next scan can decode the rows the viewport wants. Images not in the cache are left as they are.

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_ss_renew_image()

LWS_VISIBLE LWS_EXTERN int lws_dlo_ss_renew_image	(	struct lws_context *	cx,
		lws_dlo_t *	dlo )

lws_dlo_ss_renew_image() - re-stash one image's payload from the asset cache

Parameters

cx	the lws context
dlo	the png or jpeg dlo

As lws_dlo_ss_renew_images() for one image whose payload and decoder were evicted to make room: returns 0 if it is decodable again.

lws_dlo_asset_cache()

LWS_VISIBLE LWS_EXTERN struct lws_cache_ttl_lru * lws_dlo_asset_cache

(

struct lws_context *

cx

)

lws_dlo_asset_cache() - get the context's document asset cache, if any

Parameters

cx	the lws_context

Returns NULL if the context was created without dlo_asset_cache_dir, else the L1 cache handle of the context asset cache, for inspection or manual invalidation using the lws_cache_ttl apis. The cache belongs to the context and is destroyed with it.

References LWS_EXTERN, and LWS_VISIBLE.

lhp_displaylist_layout()

LWS_VISIBLE LWS_EXTERN lws_stateful_ret_t lhp_displaylist_layout	(	struct lhp_ctx *	ctx,
		char	reason )

lws_font_register()

LWS_VISIBLE LWS_EXTERN int lws_font_register	(	struct lws_context *	cx,
		const uint8_t *	data,
		size_t	data_len )

References LWS_EXTERN, and LWS_VISIBLE.

lws_font_register_file()

LWS_VISIBLE LWS_EXTERN int lws_font_register_file	(	struct lws_context *	cx,
		const char *	path )

lws_font_register_file() - register an mcufont kept in a file

Parameters

cx	the lws context
path	the file, opened through the context's fops

Only the face's name and metrics stay in memory. Its dictionary and the glyph strings text needs are read in when text is set in it, and are reclaimable heap occupants: they are given back when memory runs short and read again when next needed.

References LWS_EXTERN, and LWS_VISIBLE.

lws_fonts_register_dir()

LWS_VISIBLE LWS_EXTERN int lws_fonts_register_dir	(	struct lws_context *	cx,
		const char *	dirpath )

lws_fonts_register_dir() - register every .mcufont in a directory

Parameters

cx	the lws context
dirpath	the directory to scan

Returns the number of faces registered (0 if the directory can't be read or holds none).

References LWS_EXTERN, and LWS_VISIBLE.

lws_font_choose()

LWS_VISIBLE LWS_EXTERN const lws_display_font_t * lws_font_choose	(	struct lws_context *	cx,
		const lws_font_choice_t *	hints )

References LWS_EXTERN, and LWS_VISIBLE.

lws_fonts_destroy()

LWS_VISIBLE LWS_EXTERN void lws_fonts_destroy

(

struct lws_context *

cx

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_file_register()

LWS_VISIBLE LWS_EXTERN lws_dlo_filesystem_t * lws_dlo_file_register	(	struct lws_context *	cx,
		const lws_dlo_filesystem_t *	f )

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_file_unregister()

LWS_VISIBLE LWS_EXTERN void lws_dlo_file_unregister

(

lws_dlo_filesystem_t **

f

)

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_file_unregister_by_name()

LWS_VISIBLE LWS_EXTERN void lws_dlo_file_unregister_by_name	(	struct lws_context *	cx,
		const char *	name )

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_file_choose()

LWS_VISIBLE LWS_EXTERN const lws_dlo_filesystem_t * lws_dlo_file_choose	(	struct lws_context *	cx,
		const char *	name )

References LWS_EXTERN, and LWS_VISIBLE.

lws_dlo_file_destroy()

LWS_VISIBLE LWS_EXTERN void lws_dlo_file_destroy

(

struct lws_context *

cx

)

Variable Documentation

lws_dlo_fops

LWS_VISIBLE LWS_EXTERN_FOR_DATA const struct lws_plat_file_ops lws_dlo_fops

Definition at line 1005 of file lws-dlo.h.
